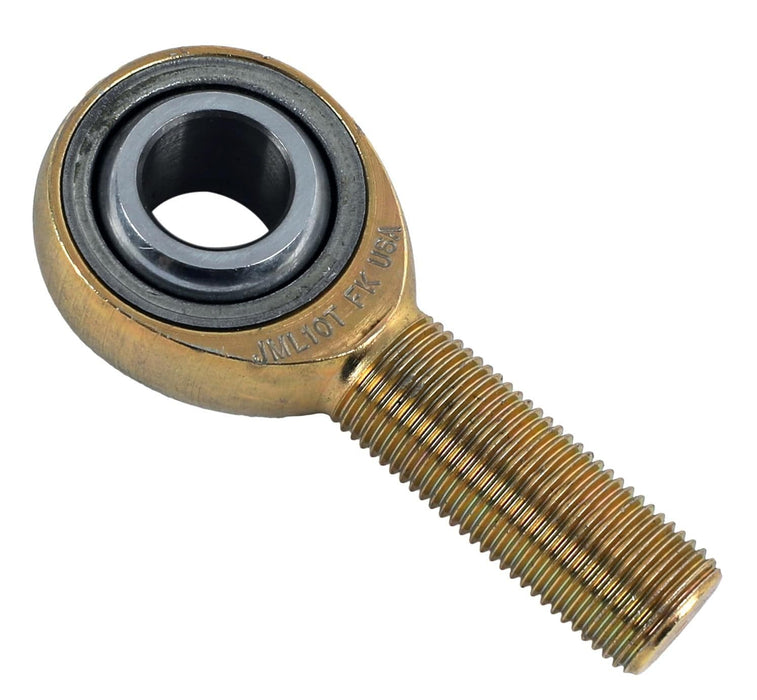

FK JM Series Rod Ends JML10T
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JML10T
Part Type: Rod Ends
Product Line: FK JM Series Rod Ends
Automotive Fittings Part Number: FKB-JML10T
UPC: 800199381016
Rod End Thread Size: 5/8 in.-18 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.562 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: No
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 16 degrees
Rod End Static Load Capacity: 7,400 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:
FK JM Series rod ends feature a heat-treated, zinc plated, and chromate treated alloy steel body. Their ball is made of 52100 steel and is heat-treated and hard chrome plated for durability. JM Series rod ends have heat-treated steel alloy races, which are zinc plated and chromate treated to resist oxidation. These 3-piece, wear-resistant rod ends are precision-made and are offered in metal-to-metal or PTFE-lined styles. Order the size, thread, load capacity and other options available for your application.
