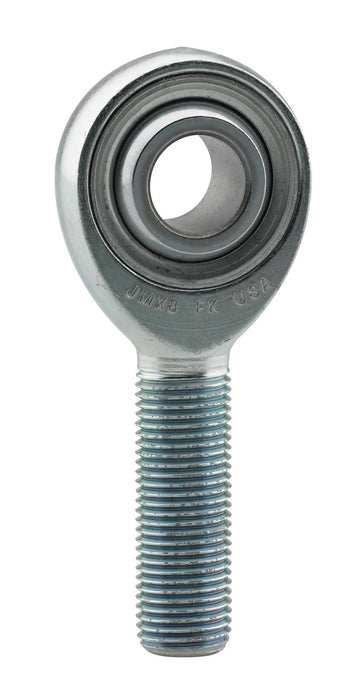

FK JMX/JMXL Series Rod Ends JMXL4TY
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JMXL4TY
Part Type: Rod Ends
Product Line: FK JMX/JMXL Series Rod Ends
Automotive Fittings Part Number: FKB-JMXL4TY
UPC: 800199400434
Rod End Thread Size: 1/4 in.-28 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.250 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.000 in.
Rod End Head Diameter: 0.750 in.
Rod End Head Width: 0.281 in.
Grease Fitting: No
Rod End Centerline Length: 1.562 in.
Heat-Treated: Yes
Rod End Ball Width: 0.375 in.
Rod End Misalign Angle: 16 degrees
Rod End Static Load Capacity: 5,262 lbs.
Rod End Material: Alloy steel
Quantity: Sold individually.
Notes: Features a PTFE liner that eliminates the clearance which causes a very tight fit rod end and a press-in stud in rod end bore.
Description:
FK JMX/JMXL Series 3-piece rod ends are precision-built for high strength. The bodies and races are heat-treated steel alloy that is zinc plated and chromate treated for corrosion resistance. The ball is hard chrome plated 52100 steel, offering excellent wear and durability. These rod ends are available in a wide range of size and options, with right (JMX) or left (JMXL) hand threads. You can also choose JMX/JMXL in metric dimensions with PTFE liners for high load capacities. FK Bearings provide the expertise and quality ends to meet your needs. Order the 3-piece JMX/JMXL Series rod ends designed to fit your application.
