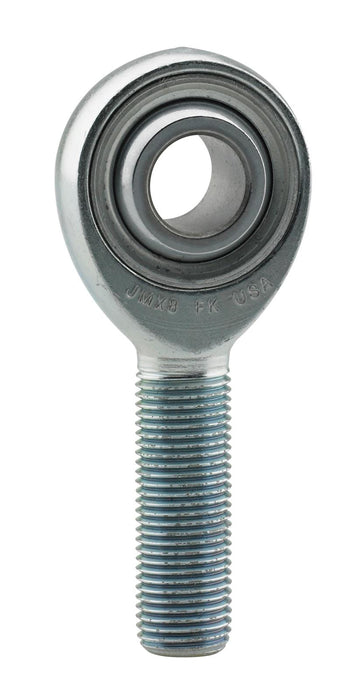

FK JMX-M/JFX-M Series Rod Ends JMXL22MT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: JMXL22MT
Part Type: Rod Ends
Product Line: FK JMX-M/JFX-M Series Rod Ends
Automotive Fittings Part Number: FKB-JMXL22MT
UPC: 800200532222
Rod End Thread Size: M22 x 1.5 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 22.000mm
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 51.000mm
Rod End Head Diameter: 50.000mm
Rod End Head Width: 19.500mm
Grease Fitting: No
Rod End Centerline Length: 86.000mm
Heat-Treated: Yes
Rod End Ball Width: 28.000mm
Rod End Misalign Angle: 22 degrees
Rod End Static Load Capacity: 30,821 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Notes: Features a PTFE liner that eliminates the clearance which causes a very tight fit rod end.
Description:
FK JMX-M/JFX-M Series high-strength rod ends are available for a wide range of applications. They're used to join the ends of steering links, control rods, and other mechanically controlled tie rods. Since the center of rotation of a rod end is on the axis of both connected shafts, it provides reliable point-to-point contact. Common signs of a failing rod end include a steering wheel that shakes or vibrates—and looseness or excessive play in the steering wheel. The vibration typically becomes worse as you accelerate or turn. These 3-piece FX metric replacements come in a variety of size options, in metal-to-metal or PTFE-lined styles. Machined from heat-treated alloy steel with a zinc plated finish, the rod ends are offered in different misalign angles and static load capacities.
