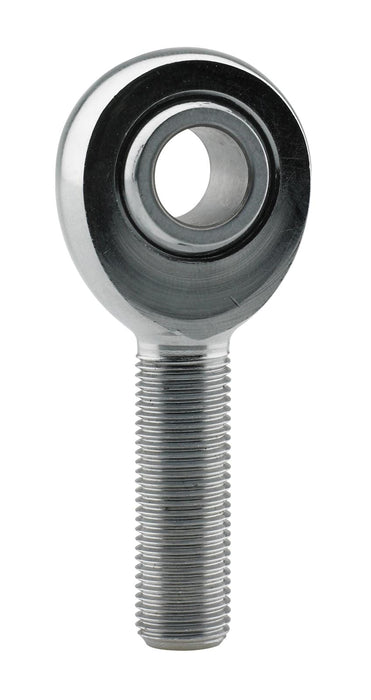

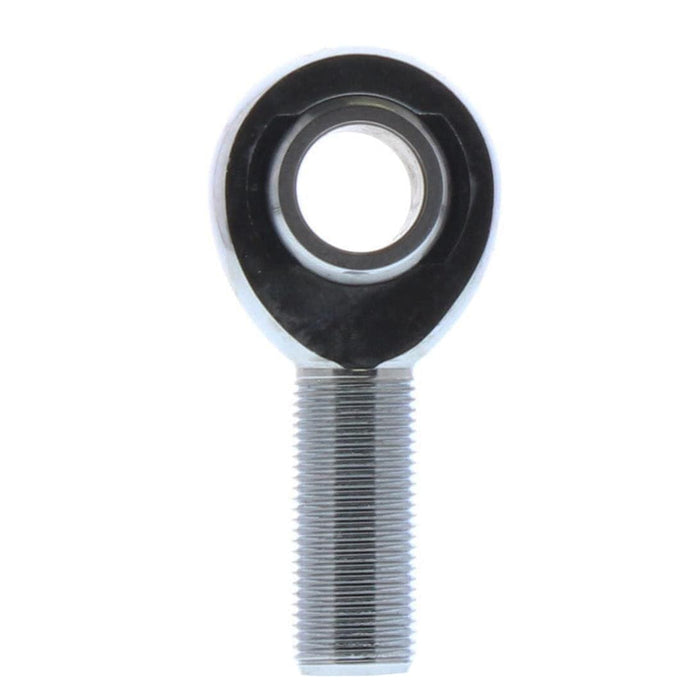

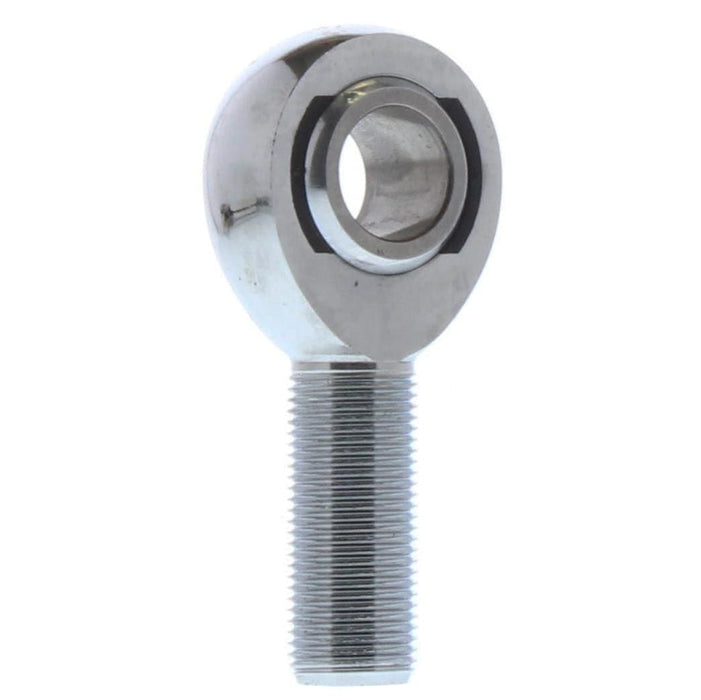

FK KMX Series Rod Ends KMX12
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: KMX12
Part Type: Rod Ends
Product Line: FK KMX Series Rod Ends
Automotive Fittings Part Number: FKB-KMX12
UPC: 800199931204
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Nylon lined
Thread Length: 1.750 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.687 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 23,192 lbs.
Rod End Material: Alloy steel
Rod End Finish: Natural
Quantity: Sold individually.
Description:
FK KMX Series rod ends are constructed with a heat-treated and hard chrome plated alloy steel body with a 52100 steel hard chrome plated ball. They are 2-piece, injected nylon-style rod ends featuring a race made of nylon 10 or an equivalent.
