FK NJM/NJF 3-Piece Precision Rod Ends NJML10
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: NJML10
Part Type: Rod Ends
Product Line: FK NJM/NJF 3-Piece Precision Rod Ends
Automotive Fittings Part Number: FKB-NJML10
UPC: 800199441000
Rod End Thread Size: 5/8 in.-18 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.750 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: No
Rod End Misalign Angle: 16 degrees
Rod End Static Load Capacity: 7,400 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:

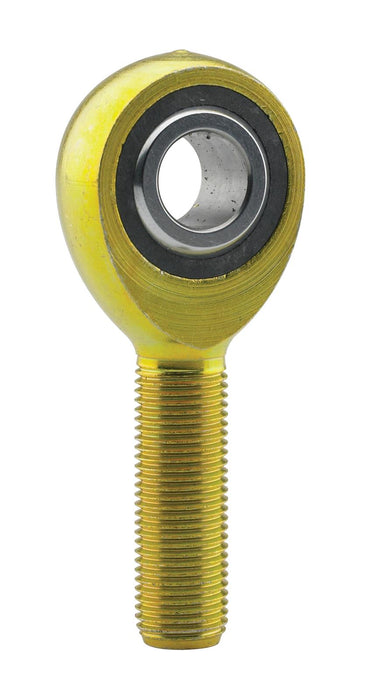

FK NJM/NJF rod ends offer 3-piece precision created from low-carbon steel. These wear-resistant replacements feature PTFE-lubricated, fiber-reinforced engineering plastic races for smooth operation. The bodies are zinc plated and chromate-treated for corrosion resistance, while the balls are case-hardened and zinc plated for excellent wear and durability. Order the size, load capacity, and other options needed for your application.
