FK RSM Series Rod Ends RSM10Z
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: RSM10Z
Part Type: Rod Ends
Product Line: FK RSM Series Rod Ends
Automotive Fittings Part Number: FKB-RSM10Z
UPC: 800199451078
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.750 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.562 in.
Grease Fitting: Yes
Rod End Centerline Length: 2.875 in.
Heat-Treated: No
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 13 degrees
Rod End Static Load Capacity: 16,613 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:

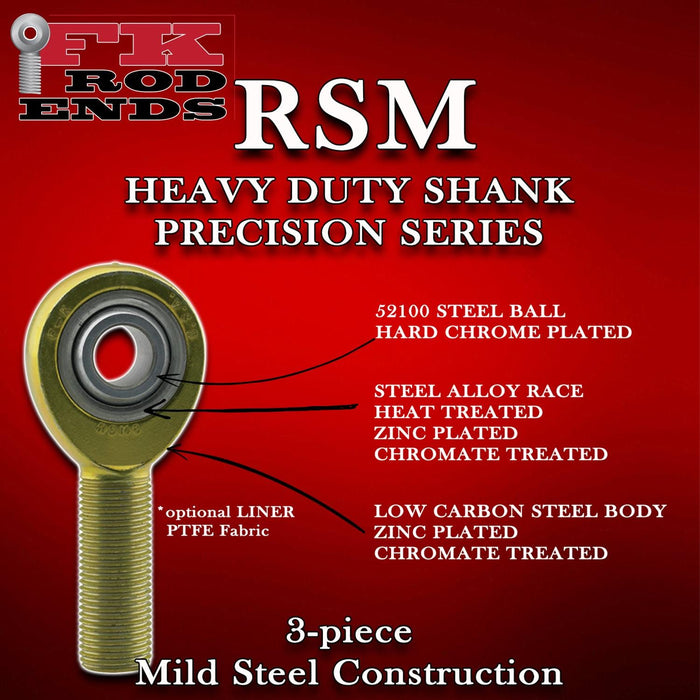

FK RSM Series rod ends offer 3-piece, extra-strong construction with a heavy-duty shank. They feature a heat-treated alloy steel body that's zinc plated and chromate treated for strength and corrosion resistance. RSM Series rod end balls are made from heat-treated, hard chrome plated 52100 steel. Heat-treated steel alloy races are chromate treated and zinc plated. RSM Series rod ends are available in metal-to-metal or PTFE-lined styles. Order the size, thread, misalign angle, load capacity, and other options needed for your application.
