FK RSMX Series Rod Ends RSMX4
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: RSMX4
Part Type: Rod Ends
Product Line: FK RSMX Series Rod Ends
Automotive Fittings Part Number: FKB-RSMX4
UPC: 800199470406
Rod End Thread Size: 5/16 in.-24
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.250 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.250 in.
Rod End Head Diameter: 0.875 in.
Rod End Head Width: 0.281 in.
Grease Fitting: No
Rod End Centerline Length: 1.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.375 in.
Rod End Misalign Angle: 13 degrees
Rod End Static Load Capacity: 8,471 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Description:

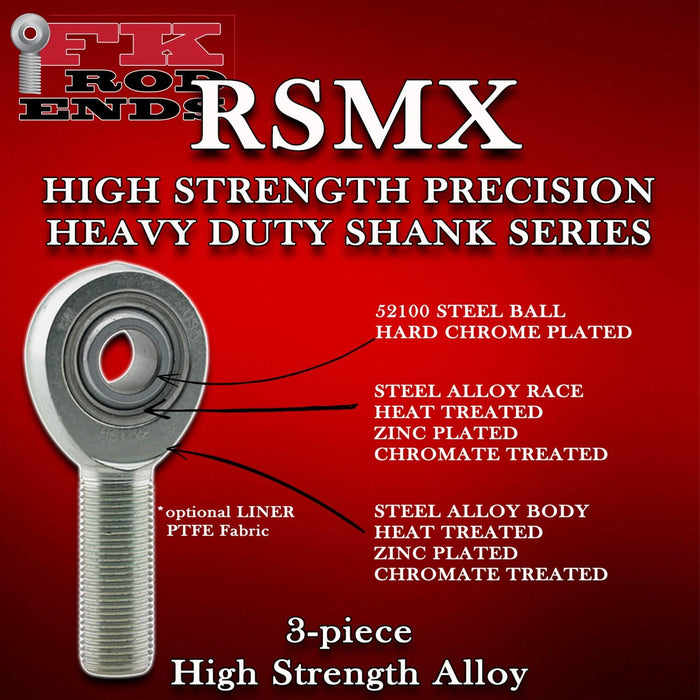

FK RSMX Series rod ends are 3-piece, extra-strong rods with heavy-duty shanks. Their alloy steel bodies are heat-treated, chromate-treated, and zinc plated for strength and durability. Their durable 52100 steel balls are heat-treated and hard chrome plated. RSMX Series rod ends' steel alloy races are heat-treated, zinc plated, and chromate treated for additional strength. Self-lubricating PTFE liners are available with these rod ends.
