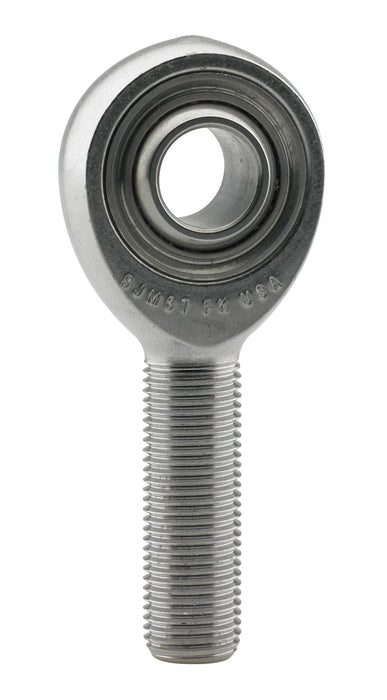

FK SJM-T/SJF-T/SRSM-T Series Rod Ends SJM12T
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: SJM12T
Part Type: Rod Ends
Product Line: FK SJM-T/SJF-T/SRSM-T Series Rod Ends
Automotive Fittings Part Number: FKB-SJM12T
UPC: 800199871210
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.687 in.
Rod End Head Diameter: 1.775 in.
Rod End Head Width: 0.640 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 17 degrees
Rod End Static Load Capacity: 29,310 lbs.
Rod End Material: Stainless steel
Rod End Finish: Natural
Quantity: Sold individually.
Description:
FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.
