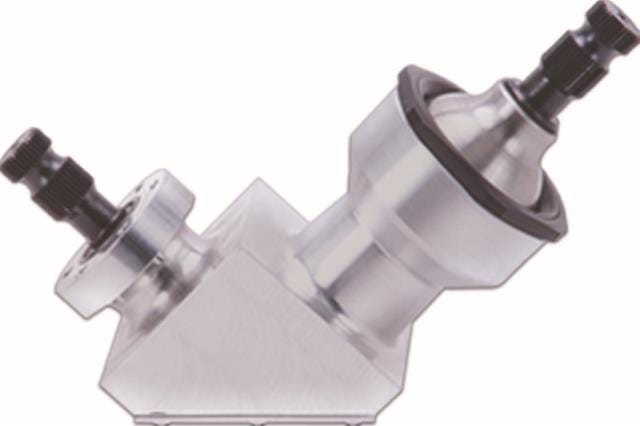

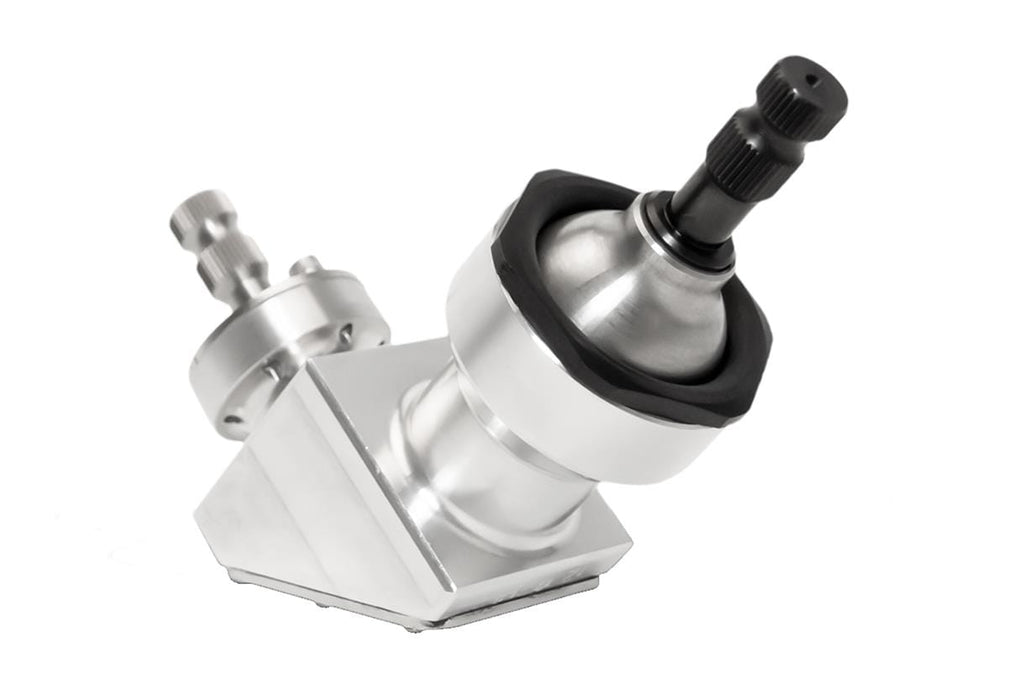

Flaming River VDOG Variable Angle Gears FR20302
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: FR20302
Part Type: Steering U-Joints, Couplers and Rag Joints
Product Line: Flaming River VDOG Variable Angle Gears
Automotive Fittings Part Number: FLA-FR20302
Steering Universal Joint Style: 90-degree
Universal Joint Material: Aluminum
Universal Joint Finish: Natural
Vibration Damper Included: No
Wiring Harness Included: No
Steering Shaft Included: No
Quantity: Sold individually.
Notes: 3/4 in.-36 output shaft.
Description:

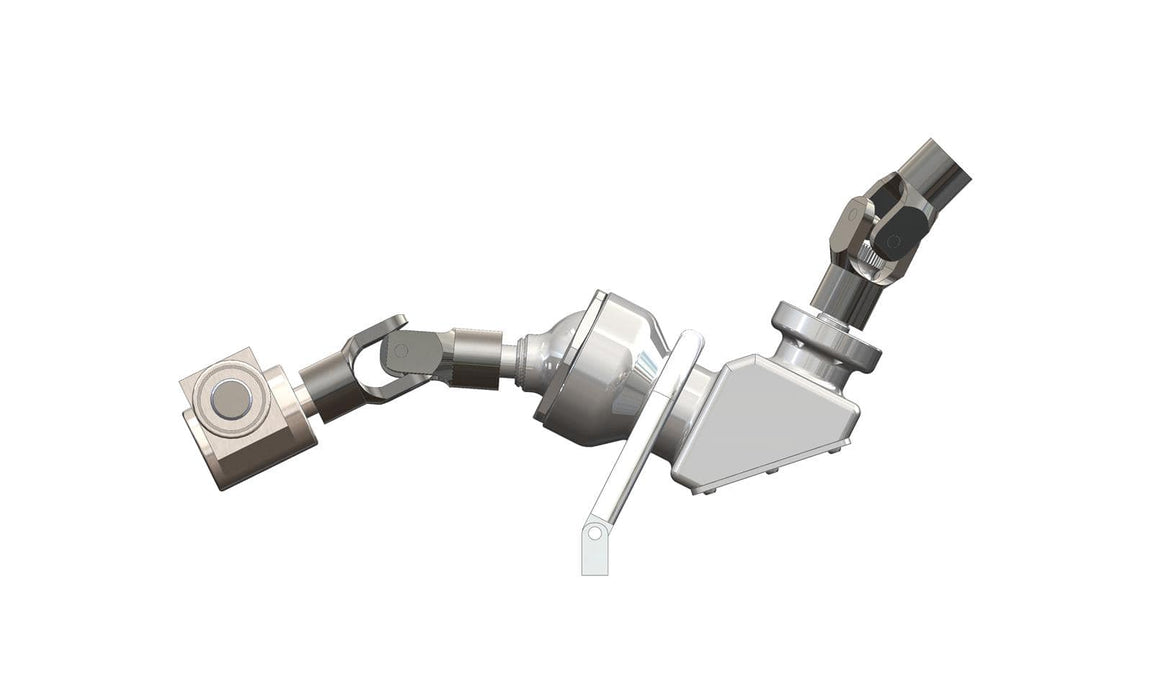

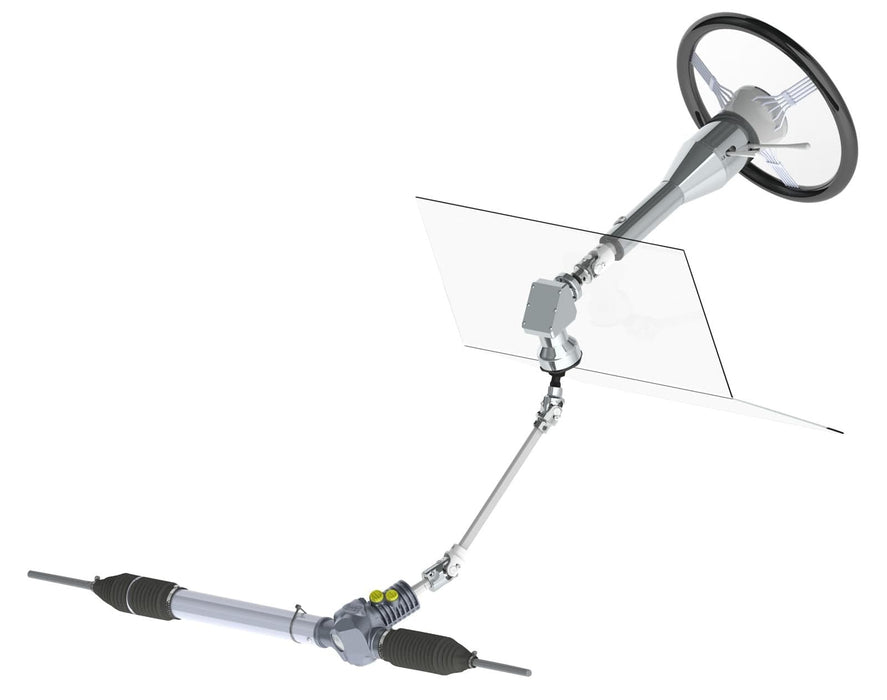

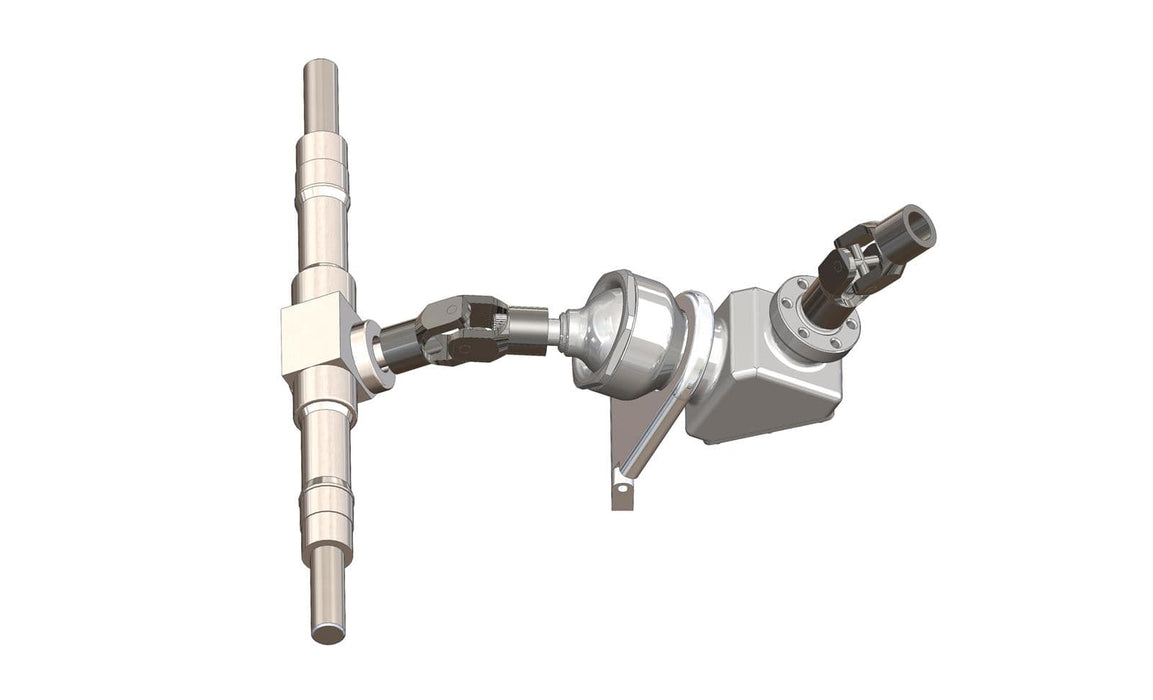

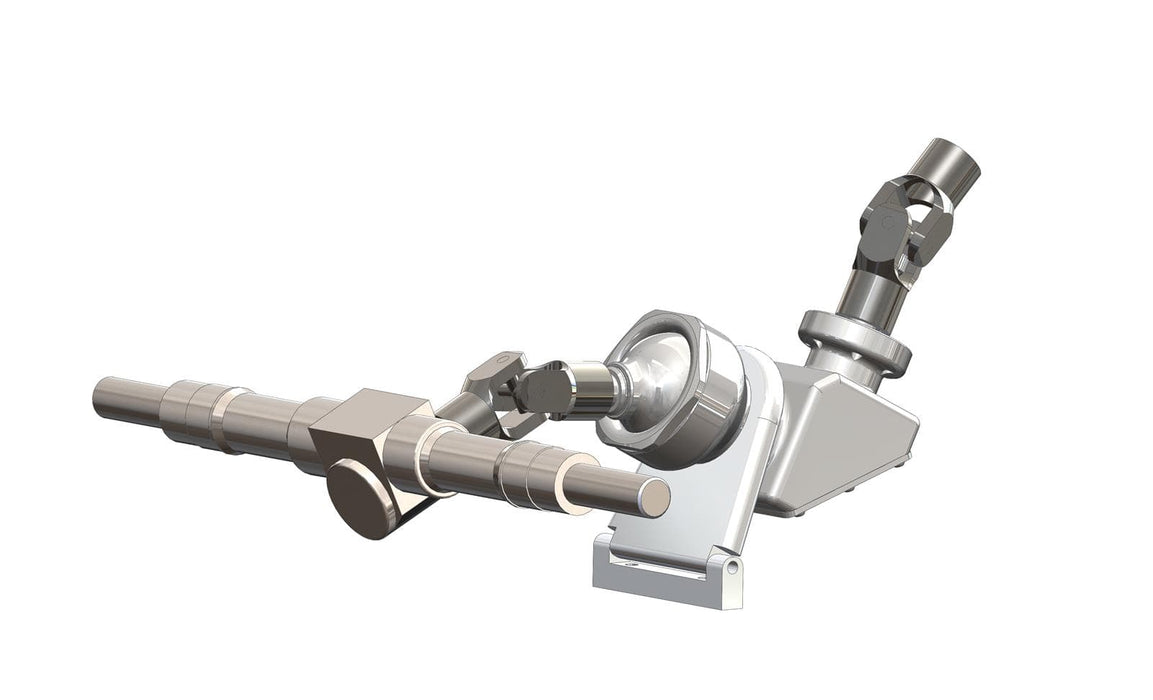

Flaming River VDOG variable angle gears have a strong aluminum housing—available in either cast or billet—and the output shaft is 3/4-36 in. for compatibility with universal joints. Each unit is gear driven without any chains or sprockets. It can be mounted in horizontal or vertical positions—ideal for cab-over vehicles, T-Buckets, and specialty builds with big motors and tight firewall clearance. Order the material and finish you prefer.
Additional features:

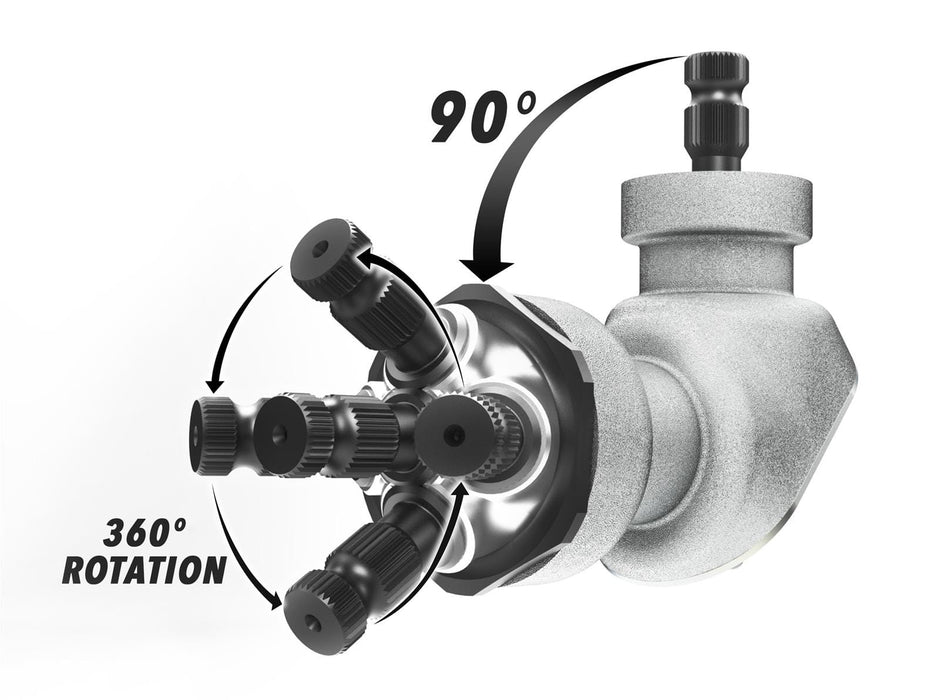

* 90 degree gear box with a 35 degree variable angle shaft
* Articulating ball design for maximum adjustability
* 1:1 ratio to maintain rack and pinion or steering box gear ratio
* Award-winning: 2019 SEMA Best Engineered New Product and Best New Street Rod Product
