FuelTech FT Dual Power Drivers 3010008282
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 3010008282
Part Type: Data Acquisition Components
Product Line: FuelTech FT Dual Power Drivers
Automotive Fittings Part Number: FCH-3010008282
Data Acquisition Component Type: Power driver
Quantity: Sold individually.
Description:

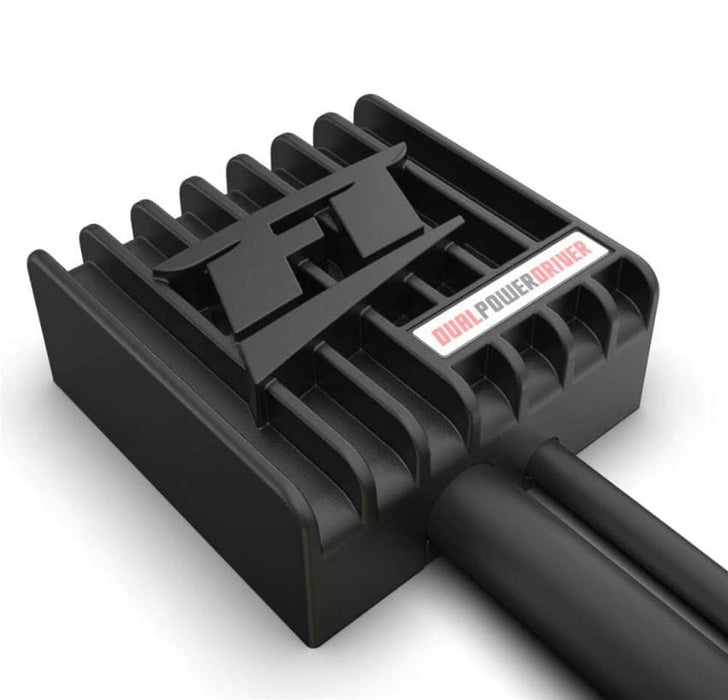

The FuelTech FT dual power drivers have two half bridge outputs that allows the activation of up to 25A current. With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. These units are able to drive high-speed PWM (using PWM ECU output). The robust hardware brings very low delay on activation, allowing the use of controls that use high-speed PWM signal.
Tech specs:
* Power: 9 V to 30 V
* Max outputs current (total): 25A
* Peak current: 100A to 10ms
* Operating voltage: 9 V to 30 V
* Max operating frequency: 25KHz @ 30 V
* Input trigger level Low: <1.3 V
* Input trigger level High: >1.6 V
* Switching delay: high-to-low: 5.6 microseconds; low-to-high: 6 microseconds
