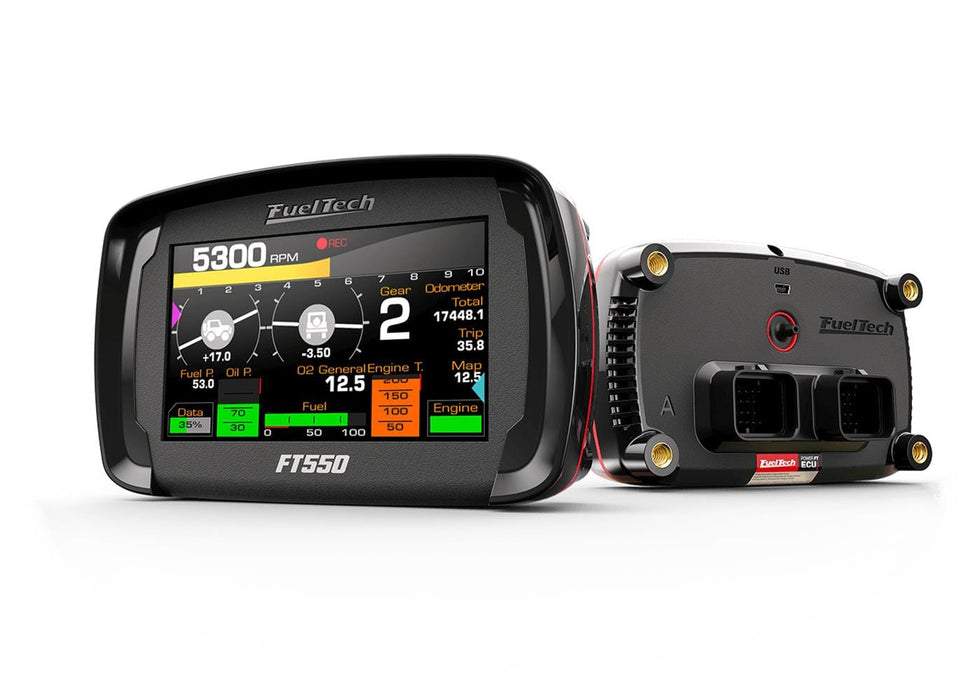

FuelTech FT550 EFI System 3010005496
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 3010005496
Part Type: Engine Management Systems
Product Line: FuelTech FT550 EFI System
Automotive Fittings Part Number: FCH-3010005496
UPC: 7908074001790
Transmission Controller Included: Yes
High Impedence Injectors: Up to 10
Low Impedence Injectors: Up to 10
Coils: Up to 8
Digital Inputs: 14
Analog Inputs: 14
Wideband Controller: No
Wideband Channels: 1
CANBUS Enabled: Yes
CANBUS Networks: 2
Knock Control: Yes
Knock Channels: 1
Drive-By-Wire Capable: Yes
Drive-By-Wire Channels: 1
VVT Control: Yes
VVT Channels: 4
Boost Control: Yes
Nitrous Control: Yes
Traction Control: Yes
Launch Control: Yes
Engine Protection: Yes
Flex Fuel Compatible: Yes
Multi-fuel Capable: Yes
Data Logger: Yes
Oxygen Sensor Included: No
Display Included: Yes
Handheld Controller Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
FuelTech FT550 EFI systems were developed and created to put you in control! The FT550 ECU is an engine fuel control and monitoring system: electronic fuel injection, integrated dashboard, data acquisition, and power management system all-in-one! It uses the same FTManager software as the FT600, with the same features and functionalities--including the newest update that allows the user to update their fuel map by applying the oxygen closed loop corrections that took place from a log file. Map files of all the PowerFT ECUs are compatible with each other, meaning that you can upgrade ECUs and keep the same tune you had already. The dashboard design of the FT550 ECU systems feature an engine start button, new inclinometer gauges; and virtual LEDs for arrows, headlights and other functions. The touch screen allows editing the maps directly on the module (without the need for computer use) and seamless integration between the ECU and vehicle dashboard.
More key features and benefits:
* Sturdy, waterproof plastic case automotive connectors with 52 pins, USB communication and two CAN Bus ports, 14 inputs and 24 outputs that are fully configurable
* Best ECU for projects that require more features, including GearController (power-shifts), built-in accelerometer (G-meter) and gyroscope; in addition to all PowerFT ECU line features such as sequential injection and ignition, O2 closed loop, active traction control, integrated BoostController, internal datalogger, progressive and PRO-Nitrous controls, odometers, electronic throttle control, inclinometer, drag racing features and more
