FuelTech PRO550/600 FTSPARK-8 Harnesses 2002100143
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 2002100143
Part Type: Wiring Harnesses
Product Line: FuelTech PRO550/600 FTSPARK-8 Harnesses
Automotive Fittings Part Number: FCH-2002100143
UPC: 810060861141
Fuse Block Included: No
Quantity: Sold individually.
Notes: Ford cylinder numbering.
Description:

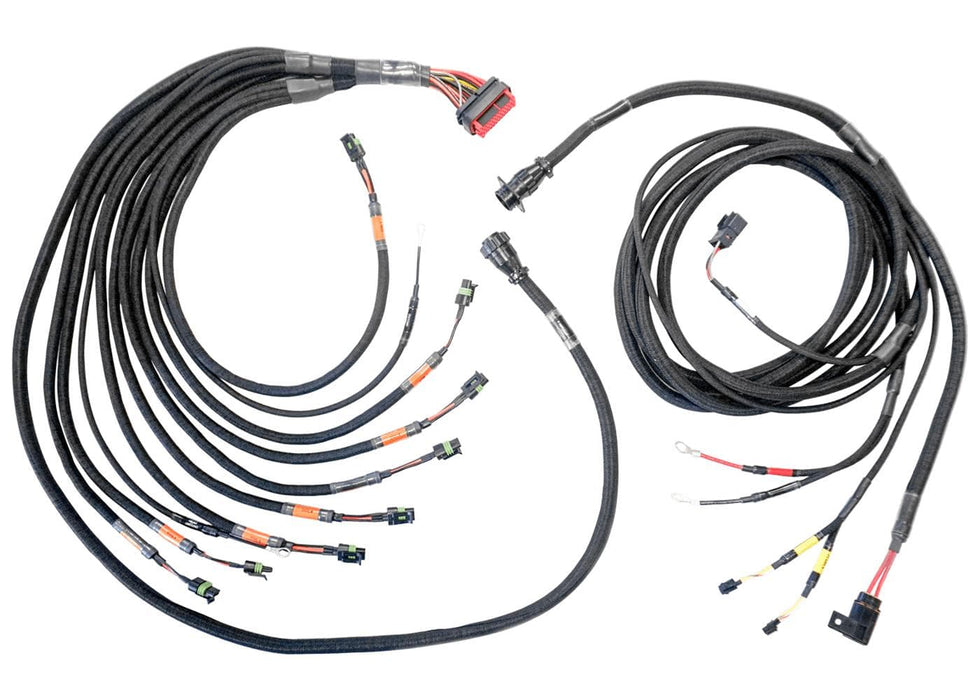

FuelTech PRO550/600 FTSPARK-8 harnesses are true plug-and-play expansions to complement both the PRO550 and PRO600 V8 harness. With these expansion harnesses you can make the change to a high-powered multi-coil setup with ease. Each harness is fitted with a 16-way CPC firewall connection that makes adding the coils and FTSpark-8 a simple installation. The harnesses include all terminations to suit the FuelTech CDI racing coils, FuelTech CAN connection, and output controls. FuelTech PRO550/600 FTSPARK-8 harnesses have a label for each connector and the insulation is heat, moisture, and oil-resistant.
Additional information:
* Harness is built using a serial bus connection (one wire) which only works with FuelTech ECUs--FT450 and above.
* Uses outputs B (gray wires) on PRO600 harness
* Includes:
-- CAN connector
-- Power and ground ring terminals (battery)
-- 10-way connector with wires for connection with the ECU and CPC connector for the firewall
