FuelTech PRO550/600 V8 Smart Coil Harnesses 2002100109
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 2002100109
Part Type: Wiring Harnesses
Product Line: FuelTech PRO550/600 V8 Smart Coil Harnesses
Automotive Fittings Part Number: FCH-2002100109
UPC: 810060861851
Fuse Block Included: No
Quantity: Sold individually.
Notes: Ford cylinder numbering.
Description:

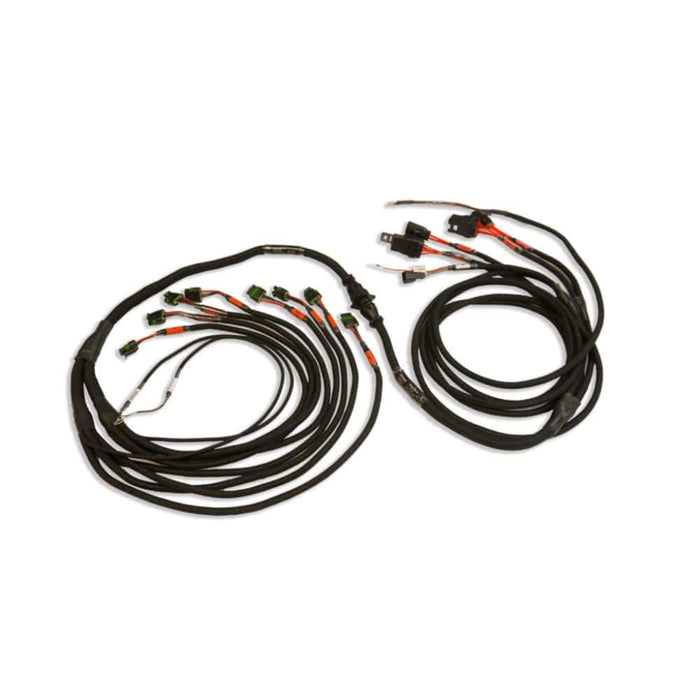

FuelTech PRO550/600 V8 Smart coil harnesses are true plug-and-play expansions to complement both the PRO550 and PRO600 V8 harness. With these expansion harnesses you can make the change to multi-Smart coils with ease. Each harness is fitted with a 16-way CPC firewall connection that makes adding the coils a simple installation. The harnesses include all terminations to suit the Smart coils, FuelTech CAN connection, and output controls. FuelTech PRO550/600 harnesses have a label for each connector and the insulation is heat, moisture, and oil-resistant.
Additional information:
* Harness is built for use with FuelTech's Smart ignition coils with built-in igniter
* Uses outputs B (gray wires) on PRO600 harness
* Includes:
-- Fuse and relay
-- Power and ground ring terminals (battery)
-- 10-way connector with wires for connection with the ECU and CPC connector for the firewall
