FuelTech Relays 3020100310
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 3020100310
Part Type: Relays
Product Line: FuelTech Relays
Automotive Fittings Part Number: FCH-3020100310
Amperage Rating: 40 amps
Volts: 12 V
Terminal Type: Male pin
Relay Terminals: 4
Wiring Harness Included: No
Quantity: Sold individually.
Notes: 40 amp fused.
Description:

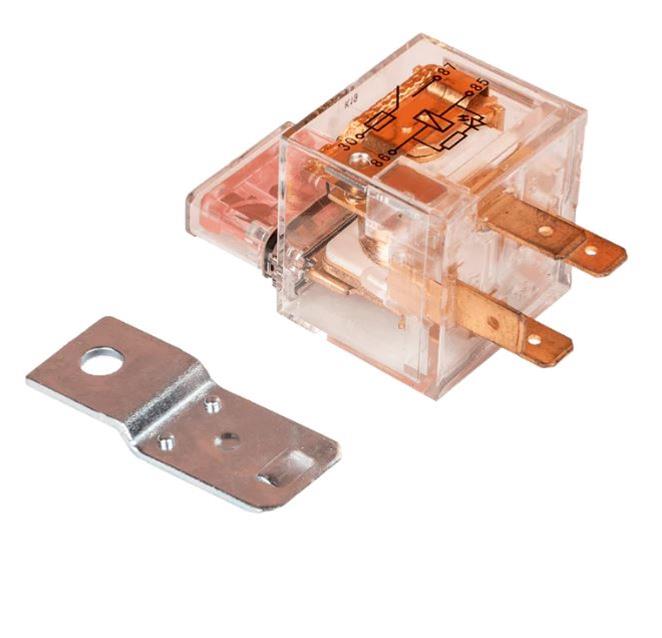

FuelTech offers high-quality sealed relays which are typically used for ECU, injectors, and coils when building your own harness. One relay is required per item being wired. Relays have a built-in 40 amp fuse.
Electrical Connections:
85 - Trigger - FT auxiliary output (activated when switched to ground)
86 - Switched 12V
30 - Battery 12V
87 - Output for load - Normally open contact - 40A
