FuelTech SwitchPanel Mini 5022100301
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 5022100301
Part Type: Electrical Switch Panels
Product Line: FuelTech SwitchPanel Mini
Automotive Fittings Part Number: FCH-5022100301
Switch Panel Style: Universal mount
Number of Switches: 5
Fused Circuits: No
Circuit Breaker Included: No
Lighted: Yes
Wiring Harness Included: Yes
Relay Included: No
Accessory Switch Style: Push button
Starter Switch Included: No
Switch Panel Material: Plastic
Switch Panel Color: Black
Width (in.): 6.120 in.
Height (in.): 1.560 in.
Depth (in.): 0.820 in.
Quantity: Sold individually.
Description:

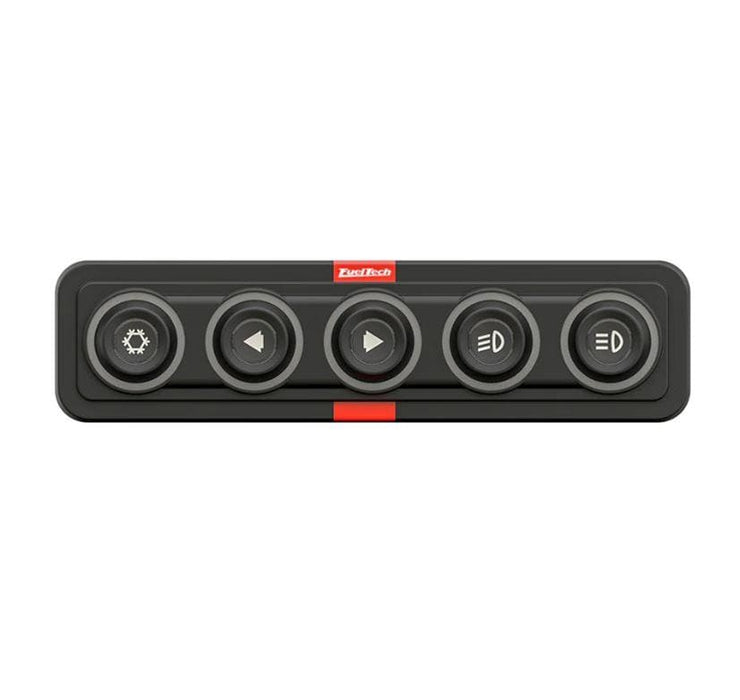

FuelTech's SwitchPanel Mini is a backlit keypad button panel that communicates with PowerFT ECUs via FTCAN 2.0. Their compact size allows the panels to be installed in any space, and the identification of each button is made through several predefined labels that come with the product--in addition to allowing you to create your own tab using the blank labels. In this way, each button will be very well identified, especially for the colored LED lighting that varies according to the programmed function. Make your build look even better with the FuelTech SwitchPanel Mini!
Additional features and benefits:

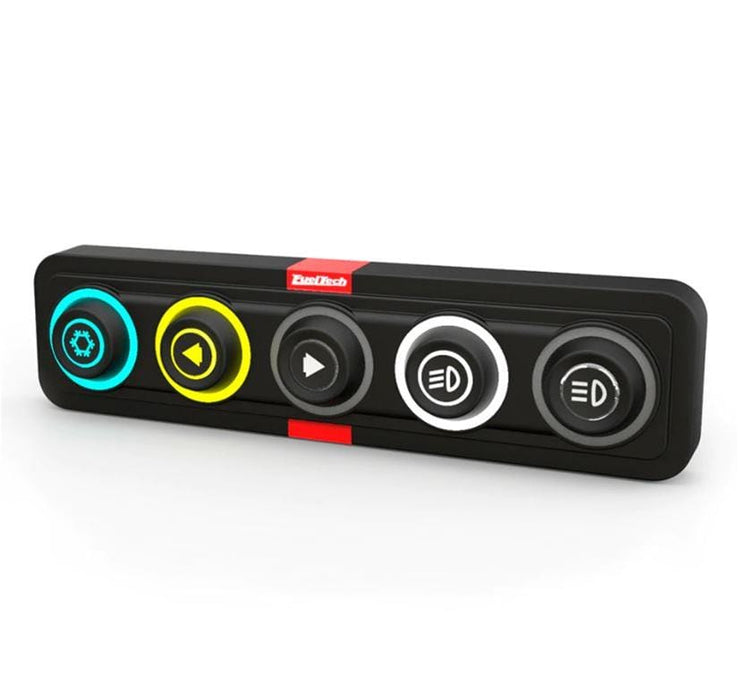

* SwitchPanel Mini keypad has configurable buttons with multicolor backlighting
* Material construction: Silicone rubber with polyurethane hardcoat
* Compatible with all features present in the PowerFT line ECUs
* All buttons can be configured, such as 2-step, air conditioning, Boost +, engine start button, switch dashboard screen, etc.
* Stores and saves inputs of the PowerFT ECUs and allows you to expand your build without having to use PowerFT ECUs with more inputs
* Well-spaced buttons with a clear tactile perception works great even while wearing gloves
* Switch type functions are also supported, such as the day/night mode button, Burnout, Progressive Nitrous, internal datalogger, etc.
* IP67 protection rating against water and dust
* Case features screws on the back to allow easy and discreet installation, and can be integrated into the dashboard for professional look
* Includes SwitchPanel Mini with harness, mounting kit, label sheet, and operation and installation instructions
