Garrett GT30/35 and GTX30/35 Turbo Installation Kits TW-GT23KIT
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: TW-GT23KIT
Part Type: Turbocharger Installation Kits
Product Line: Garrett GT30/35 and GTX30/35 Turbo Installation Kits
Automotive Fittings Part Number: GAP-TW-GT23KIT
Turbocharger Style: T-Series
Exhaust Manifold Included: No
Intercooler Included: No
Wastegate Actuator Included: No
Turbocharger Downpipe Included: No
Filter Included: No
Fuel Injectors Included: No
Computer Chip/Programmer Included: No
Gaskets Included: Yes
Hardware Included: Yes
Quantity: Sold as a kit.

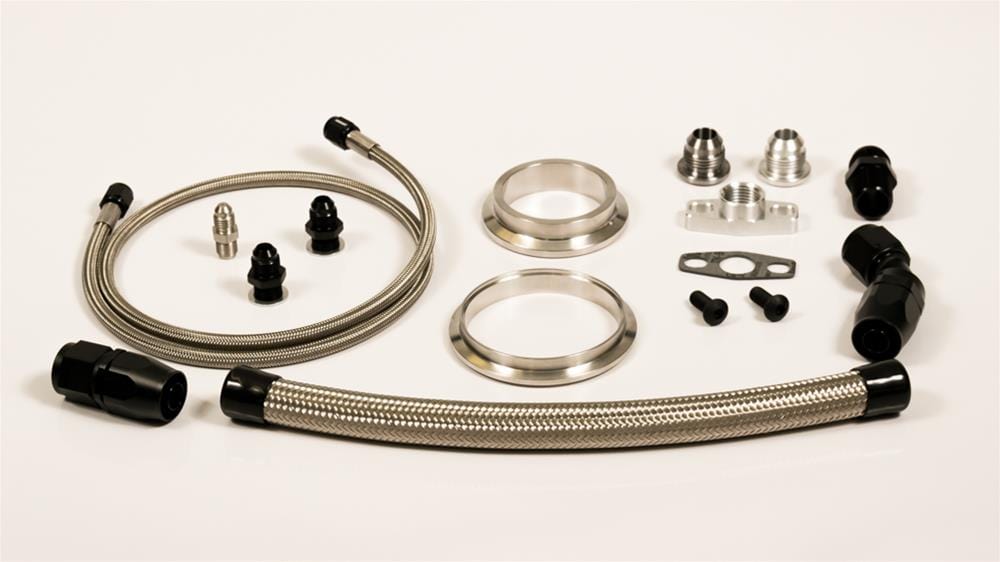

Notes: Fits Garrett V-band/V-band turbine housings. Kit includes stainless steel inlet and outlet flange, drain kit with 12 in. -10 AN braided line, a pair of -10 AN hose fittings, -10 AN adapter fitting, -10 AN oil weld pan fittings, drain flange with gasket, 36 in. -4 AN PTFE oil feed line, -4 AN oil restrictor fitting and a pair of coolant adapter fittings (-6 AN, 14mm x 1.5).
Description:
Garrett Performance offers turbo installation kits for a variety of models, including Turboworx GT30/35 and GTX30/35. They are available to fit Garrett V-Band/V-Band, T3 Divided/V-Band, or T4 Open/V-Band turbine housings. The kits include drain line with fittings, -4 AN x 3 ft. stainless steel feed line, inlet gasket and outlet flange, -4 oil restrictor fitting, and .035 in. and water jacket fittings. (See Notes above for specific part details.) Order the installation kit recommended for your turbocharger application.
