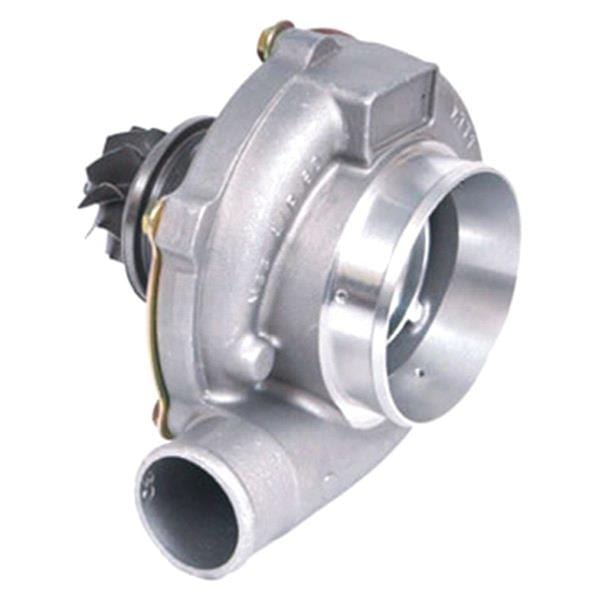

Garrett GTW Series Turbochargers 841297-5005S
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 841297-5005S
Part Type: Turbochargers
Product Line: Garrett GTW Series Turbochargers
Automotive Fittings Part Number: GAP-841297-5005S
Turbocharger Style: GTW3884R
Compressor Wheel Inducer Size: 67.00mm
Turbine Wheel Exducer Size: 65.00mm
Compressor Wheel Trim: 64.00
Turbine Wheel Trim: 76.00
Compressor Housing A/R Ratio: 0.70
Turbocharger Bearing Style: Journal bearing
Compressor Wheel Construction: Billet aluminum
Turbocharger Cooling: Oil/Water
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: No
Compressor Outlet Style: Slip fit
Ported Compressor Housing: Yes
Wastegate Actuator Included: No
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Garrett GTW Series turbochargers bring you the latest technologies with many advanced features to provide budget-minded enthusiasts cost-effective options to turbocharge their vehicles. These high performing mid-frame offerings are available in ball bearing and journal bearing options.
Garrett GTW Series turbochargers feature:
* Fully machined billet aluminum compressor wheels to provide optimal horsepower range and boost response
* Ported shroud compressor housings to increase surge resistance and to provide reliable, continuous power throughout the power band
* Lightweight aluminum backplates come standard on all GTW turbochargers reducing overall weight
* Water-cooled CHRA keeps housing temperatures to a minimum (not all options)
* Turbine wheels are constructed from Inconel, a super alloy that maintains strength during prolonged exposure to high exhaust gas temperatures (not all options)
* Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations
