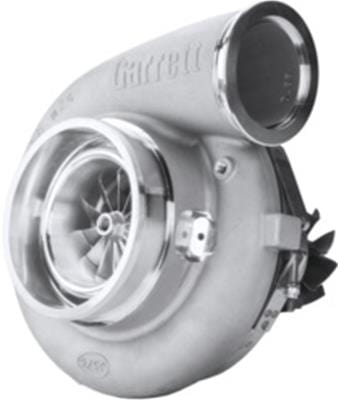

Garrett GTX Gen II Series Turbochargers 851285-5005S
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 851285-5005S
Part Type: Turbochargers
Product Line: Garrett GTX Gen II Series Turbochargers
Automotive Fittings Part Number: GAP-851285-5005S
Turbocharger Style: GTX5533R Gen2
Compressor Wheel Inducer Size: 98.00mm
Turbine Wheel Exducer Size: 102.00mm
Compressor Wheel Trim: 54.00
Turbine Wheel Trim: 84.00
Compressor Housing A/R Ratio: 0.96
Turbocharger Bearing Style: Ceramic ball bearing
Compressor Wheel Construction: Billet aluminum
Turbocharger Cooling: Oil/Water
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: No
Compressor Outlet Style: V-band
Ported Compressor Housing: Yes
Wastegate Actuator Included: No
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
Description:
Garrett GTX Gen II Series turbochargers received a major compressor wheel aero update that gives them the ability to produce up to 20 percent more horsepower than the previous version, providing hard core enthusiasts with optimal performance. And they're available in standard or reverse rotation configurations. GTX Gen II compressor wheels were designed using proprietary Honeywell computer simulation technology—focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger. Each turbocharger has the ability to create more mass airflow, offering enthusiasts a wider range of power output when tuning the vehicle. Dozens of models are available; select the options that best suit your vehicle.
Garrett Gen II GTX turbochargers feature:
* Fully machined compressor inlet and outlet
* Fully machined ported shroud
* High-flowing compressor housing design matched perfectly for the compressor wheel upgrade
* Compressor housings are equipped with a fully machined speed sensor port
* 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability
