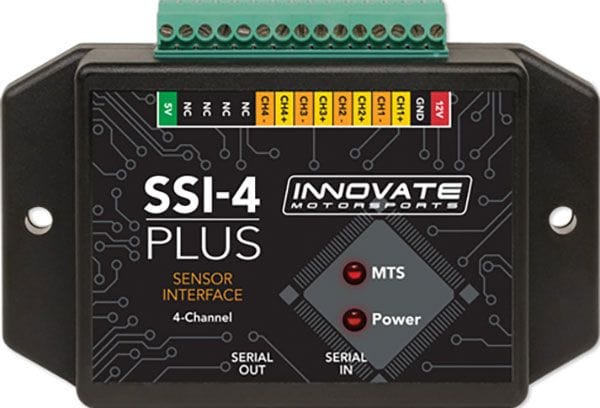

INNOVATE 4-Channel Sensor Interface SSi-4 Plus IM3914 Autofit

SSi-4 Plus IM3914

IM3914 - SSI-4 PLUS SENSOR INTERFACE
SKU IM3914
by INNOVATE
Save 7% Save 7%
$296.37 +GST
$296.37 +GST - $296.37 +GST
$296.37 +GST
$275.67 +GST
$275.67 +GST - $275.67 +GST
$275.67 +GST
$317.0205 Including GST (NZ Customers only)
Availability:
Low stock
SSi-4 Plus

4-Channel Sensor Interface

IM3914

3914

The SSI-4 PLUS includes the SSI-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual. P/N 3914 The SSI-4 PLUS will allow the capture of data from 4 external sensors. These sensors can be frequencies such as engine RPM and speed sensors or 0-5V references like MAP sensors and pressure transducers. The SSI-4 PLUS may be used as a stand-alone system or integrated with other Innovate Motorsports MTS products to create a log chain. Simple sensor device that adds 4-inputs to an MTS Log Chain Channel 1 and 2 inputs can be configured for RPM, Speed (VSS), Frequency, and 0-5 volt. In addition to the above, the channel 2 input can be used for duty cycle or dwell. Channel 3 and 4 inputs can be used for 0-5 volt 5 volt output to power external sensors
