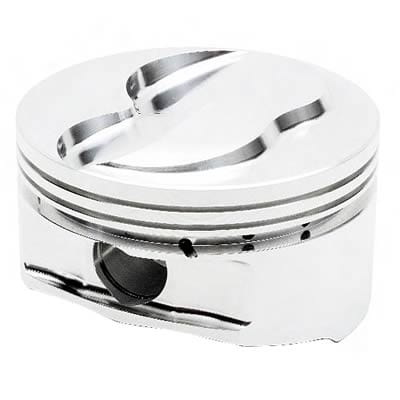

JE Pistons 302/351W Big Bore Dome Top Pistons 207416
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 207416
Part Type: Pistons
Product Line: JE Pistons 302/351W Big Bore Dome Top Pistons
Automotive Fittings Part Number: JEP-207416-8
UPC: 193564043108
Piston Rings Included: No
Bore (in.): 4.125 in.
Bore (mm): 104.775mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Rod Length: 5.400 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.230 in.
Piston Head Volume (cc): -6.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Description:
JE Pistons 302/351W big bore dome top pistons for small block Ford are available in large bore sizes to accommodate new aftermarket race blocks and most aftermarket and factory heads. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings. Cleveland and TFS twisted wedge heads will require custom pistons.
