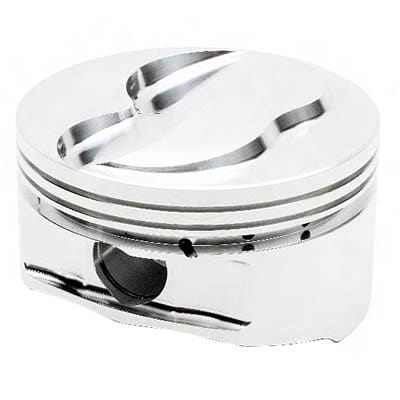

JE Pistons 302/351W Inverted Dome Top Pistons 170393S
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 170393S
Part Type: Pistons
Product Line: JE Pistons 302/351W Inverted Dome Top Pistons
Automotive Fittings Part Number: JEP-170393-1
UPC: 193564188151
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 4.000 in.
Engine Stroke Type: Stroked
Rod Length: 6.200 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.280 in.
Piston Head Volume (cc): +30.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Oil rail support is included.
Description:
JE Pistons 302/351W inverted dome top pistons are designed to be compatible with forced induction and nitrous applications. Their valve reliefs are machined to accommodate larger valves and long-duration, tight lobe separation cams. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings.
