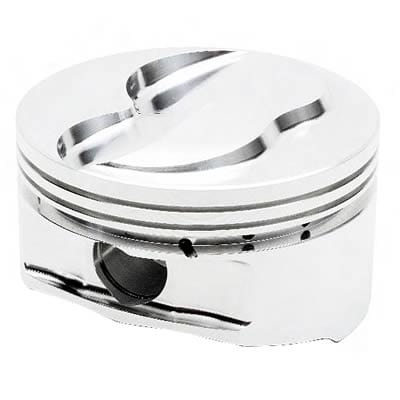

JE Pistons Big Block Chevy Blown Alcohol Series Pistons 296989
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 296989
Part Type: Pistons
Product Line: JE Pistons Big Block Chevy Blown Alcohol Series Pistons
Automotive Fittings Part Number: JEP-296989-8
UPC: 193564003393
Piston Rings Included: No
Bore (in.): 4.530 in.
Bore (mm): 115.062mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.385 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.270 in.
Piston Head Volume (cc): -30.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.017 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Designed for aftermarket big bore blocks.
Description:
JE Pistons Big Block Chevy Blown Alcohol Series pistons are perfect for high-boost blown alcohol drag racing! These forged aluminum pistons feature precision CNC-machined ring grooves, valve reliefs for oversized valves, and compatibility with angle milled heads. They include pins, double Spiro locks, double pin oilers, and accumulator grooves. The pistons may be used with buttons (sold separately) if you prefer, in place of Spiro locks. Choose the right pistons to handle your blown setup--JE Pistons Big Block Chevy Blown Alcohol Series pistons.
