JE Pistons Big Block Closed Chamber Pistons 258208
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 258208
Part Type: Pistons
Product Line: JE Pistons Big Block Closed Chamber Pistons
Automotive Fittings Part Number: JEP-258208-8
UPC: 193564031709
Piston Rings Included: No
Bore (in.): 4.280 in.
Bore (mm): 108.712mm
Stroke: 3.760 in.
Engine Stroke Type: Stock
Rod Length: 6.135 in.
Piston Style: Dome, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.765 in.
Piston Head Volume (cc): -39.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Description:

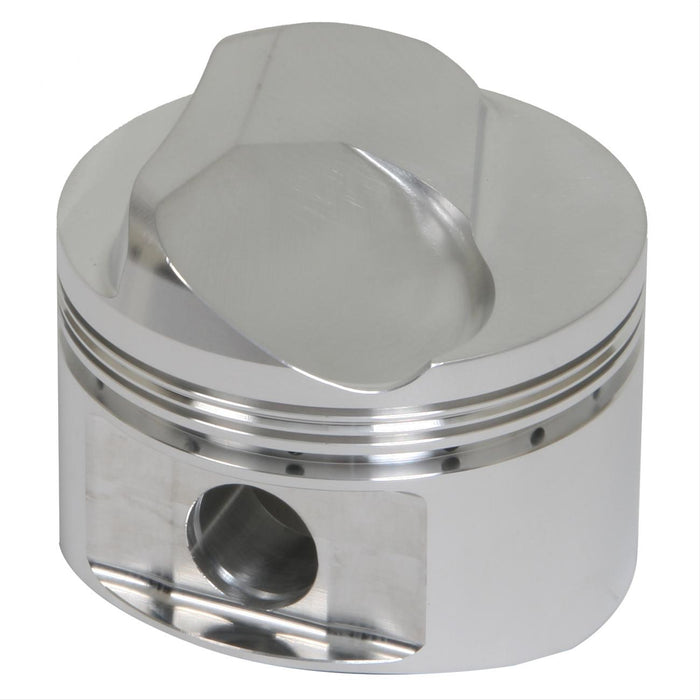

JE Pistons high compression dome pistons are designed specifically for big block Chevy closed chamber cylinder heads. Their compression height is figured using a 9.783 in. or 9.780 in. block height with zero deck clearance. The pistons include a pin, double Spiro locks, and double pin oilers. Their precision CNC-machined ring grooves will accept 1/16, 1/16, 3/16 rings.
