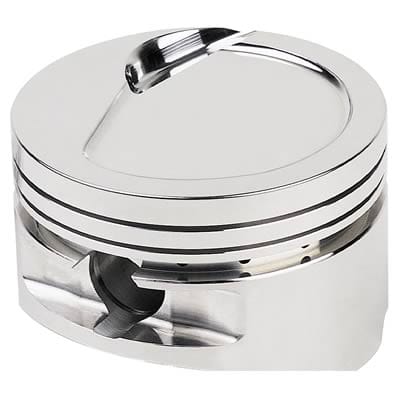

JE Pistons Big Block Inverted Dome Top Pistons 257943
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 257943
Part Type: Pistons
Product Line: JE Pistons Big Block Inverted Dome Top Pistons
Automotive Fittings Part Number: JEP-257943-8
UPC: 193564003478
Piston Rings Included: No
Bore (in.): 4.530 in.
Bore (mm): 115.062mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.385 in.
Piston Style: Dish, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.270 in.
Piston Head Volume (cc): +20.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
Description:
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications, and their performance has been proven in victory lane time and time again.
JE Pistons big block inverted dome top pistons are forged using 2618 aluminum, yielding high-tensile strength needed for high-demand performance applications, and they are designed specifically for each engine and use application to provide optimized performance durability. They feature JE Pistons' proprietary Forged Side Relief (FSR) forging design to minimize friction and power loss with reduced skirt width and save additional weight with a shorter wrist pin. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 in. rings (not included). JE big block inverted dome top pistons are available in different size specs, and can be ordered individually or in larger sets.
