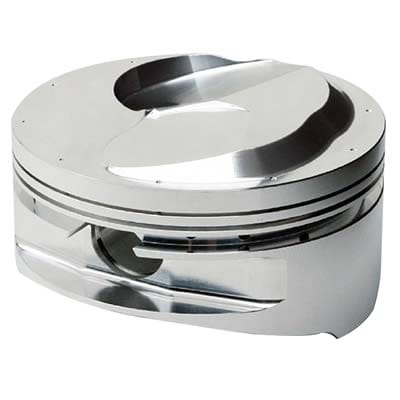

JE Pistons Big Duke/Big Chief/Big Victor GP 18 Degree Pistons 243322
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 243322
Part Type: Pistons
Product Line: JE Pistons Big Duke/Big Chief/Big Victor GP 18 Degree Pistons
Automotive Fittings Part Number: JEP-243322-8
UPC: 193564036490
Piston Rings Included: No
Bore (in.): 4.610 in.
Bore (mm): 117.094mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.535 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.120 in.
Piston Head Volume (cc): -20.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
Description:
JE Pistons Big Duke/Big Chief/Big Victor GP 18 degree pistons feature a race-proven dome and skirt design and are specifically designed for the Big Duke/Big Chief cylinder heads. The valve reliefs have been designed to accept oversized valves and long-duration, tight lobe separation roller cams. Their precision CNC-machined ring grooves accept .043 D-wall, 1/16, and 3/16 rings.
