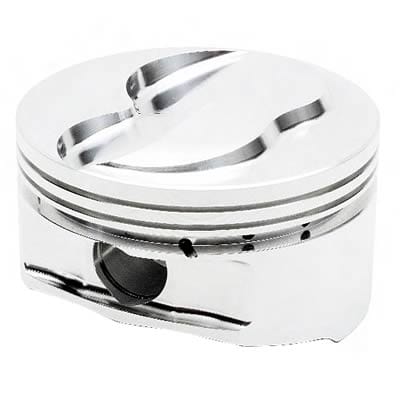

JE Pistons Brodix -12 15 Degree Dome Top Pistons 186444
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 186444
Part Type: Pistons
Product Line: JE Pistons Brodix -12 15 Degree Dome Top Pistons
Automotive Fittings Part Number: JEP-186444-8
UPC: 193564041647
Piston Rings Included: No
Bore (in.): 4.130 in.
Bore (mm): 104.902mm
Stroke: 3.800 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.100 in.
Piston Head Volume (cc): -3.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included. Solid dome design.
Description:
JE Pistons Brodix -12 15 degree dome top pistons are designed to work with most of the new 15 degree chamber designs. The race-proven hollow dome forging by JE Pistons is the newest design for Sprint Car applications. These pistons have deep valve reliefs to accommodate oversized valves and long-duration, tight lobe separation cams. They accept 1/16, 1/16, 3/16 rings. These pistons utilize hollow dome dedicated left and right hand forgings.
