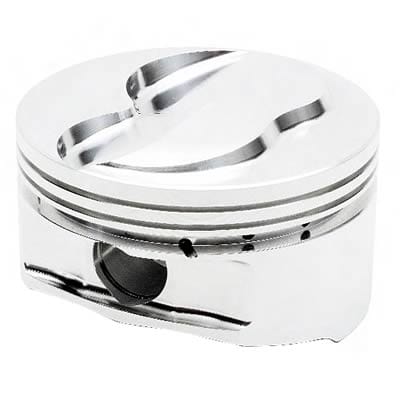

JE Pistons Pinto Mini Stock Flat Top Pistons 118560
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 118560
Part Type: Pistons
Product Line: JE Pistons Pinto Mini Stock Flat Top Pistons
Automotive Fittings Part Number: JEP-118560-4
UPC: 193564035011
Piston Rings Included: No
Bore (in.): 3.820 in.
Bore (mm): 97.028mm
Stroke: 3.126 in.
Engine Stroke Type: Stroked
Rod Length: 5.700 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.090 in.
Piston Head Volume (cc): +2.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Oil rail support included.
Description:
JE Pistons Pinto mini stock flat top pistons have a lightweight, low-drag design. They are the most popular Pinto pistons on the market today. They feature precision CNC-machined ring grooves and accept 1/16, 1/16, 3/16 rings.
