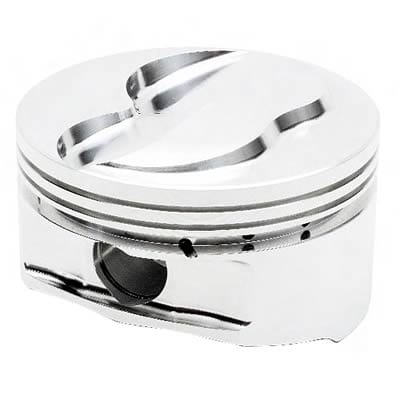

JE Pistons Pro Mod Style GP 18 Degree Pistons 194910S
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 194910S
Part Type: Pistons
Product Line: JE Pistons Pro Mod Style GP 18 Degree Pistons
Automotive Fittings Part Number: JEP-194910-1
UPC: 193564196972
Piston Rings Included: No
Bore (in.): 4.610 in.
Bore (mm): 117.094mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.385 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.280 in.
Piston Head Volume (cc): -13.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Gram weight 665g. Oil rail support included.
Description:
Designed for Pro Mod style engines, JE Pistons Pro Mod style GP 18 degree pistons are specifically designed for nitrous applications. Their precision CNC-machined ring grooves are designed for .043 backcut, 1/16, 1/16, 3/16 rings. Their compression heights are figured at zero deck clearance. These pistons will only fit Big Chief cylinder heads.
