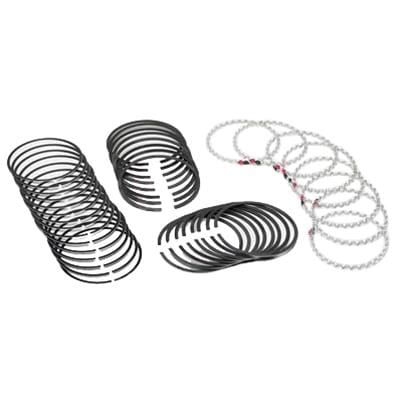

JE Pistons Pro Steel Piston Rings J616F1-3830
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: J616F1-3830
Part Type: Piston Rings
Product Line: JE Pistons Pro Steel Piston Rings
Automotive Fittings Part Number: JEP-J616F1-3830
UPC: 193564232618
Bore (in.): 3.830 in.
Bore (mm): 97.282mm
File Fit: No
Gapless: No
Gas Ported: No
Top Ring Included: Yes
Top Ring Thickness: 1.5mm
Top Ring Material: Ductile iron
Top Ring Facing Material: Plasma-moly
Second Ring Included: Yes
Second Ring Thickness: 1.5mm
Second Ring Material: Iron
Second Ring Facing Material: Phosphate coated
Oil Ring Included: Yes
Oil Ring Thickness: 4.0mm
Oil Ring Tension: Standard
Oil Ring Tension Rating: 11-12 lb.
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Chrome
Quantity: Sold as 1 set.
Notes: Single cylinder set.Barrel face D-wall neutral top ring, taper faced D-wall reverse torsional with SS50U-style oil ring.
Description:
JE Pistons Pro Steel piston rings utilize a high-strength, alloy-steel top ring that provides superior bore conformity. This is complemented by the outstanding seal and wear characteristics of a high-velocity, plasma-moly inlay coating. The top ring weighs under 10 g as a result of reduced ring radials and short axial heights, helping to minimize cylinder wall drag. The optional second ring's Napier hook profile design helps to improve oil control and efficiency.
