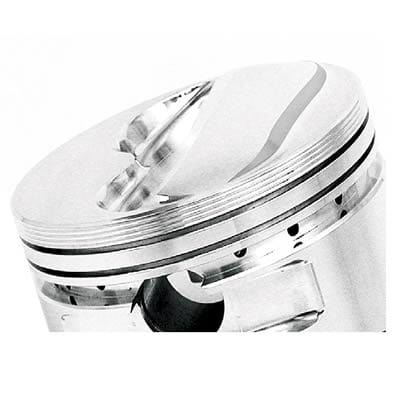

JE Pistons Small Block Nitrous Series Dome Top Pistons 173584
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 173584
Part Type: Pistons
Product Line: JE Pistons Small Block Nitrous Series Dome Top Pistons
Automotive Fittings Part Number: JEP-173584-8
UPC: 193564041937
Piston Rings Included: No
Bore (in.): 4.040 in.
Bore (mm): 102.616mm
Stroke: 3.480 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): -10.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
Description:
The rings lands, crown, and bottom band of JE Pistons nitrous series dome top pistons are specifically designed for nitrous applications. The valve reliefs accommodate most oversized valves and long-duration, wide lobe separation cams. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings, and hardened nitrous series rings are also available. These pistons will not fit Pro Topline or Brodix 11X cylinder heads.
