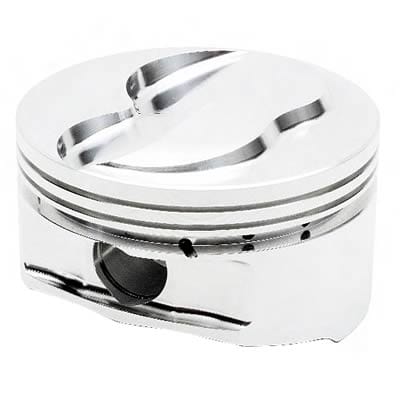

JE Pistons Sport Compact Pistons 186240
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 186240
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
Automotive Fittings Part Number: JEP-186240-4
UPC: 193564216281
Piston Rings Included: No
Bore (in.): 3.268 in.
Bore (mm): 83.000mm
Stroke: 3.654 in.
Engine Stroke Type: Stock
Rod Length: 6.260 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.213 in.
Piston Head Volume (cc): +19.60cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Suitable for nitrous. Full round skirt design.
Description:
JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
