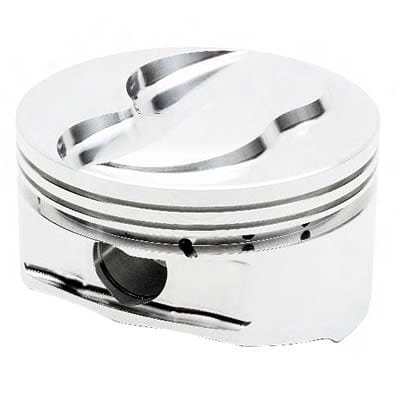

JE Pistons Sport Compact Pistons 244514
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 244514
Part Type: Pistons
Product Line: JE Pistons Sport Compact Pistons
Automotive Fittings Part Number: JEP-244514-4
UPC: 193564215239
Piston Rings Included: No
Bore (in.): 3.504 in.
Bore (mm): 89.500mm
Stroke: 3.780 in.
Engine Stroke Type: Stock
Rod Length: 6.496 in.
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.336 in.
Piston Head Volume (cc): +22.20cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Suitable for turbo or nitrous. Full round skirt design.
Description:
JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.
