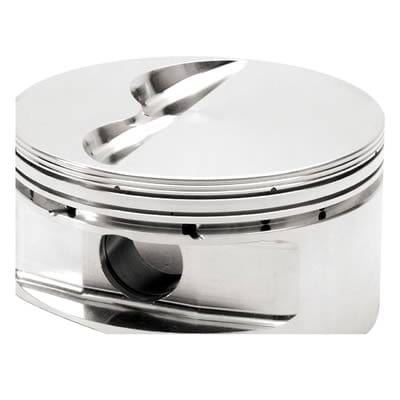

JE Pistons Tour Series Gas Ported Pistons 170693
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 170693
Part Type: Pistons
Product Line: JE Pistons Tour Series Gas Ported Pistons
Automotive Fittings Part Number: JEP-170693-8
UPC: 193564040091
Piston Rings Included: No
Bore (in.): 4.040 in.
Bore (mm): 102.616mm
Stroke: 3.480 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: 0.290 in. deep intake pocket.
Description:
JE Pistons Tour series gas ported pistons have undergone engineering changes to handle higher horsepower 4-barrel applications (approximately 650 hp) and angle-milled heads. Both the 350 and 400 Series accept oversize valves (the intake pocket is 2.255 in. and the exhaust pocket is 1.870 in.) and long-duration, tight lobe separation cams. Ring grooves are precision-machined for .043, .043, 3.0mm backcut rings with lateral gas ports for a superior ring seal.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
