Link ECU Link ECU Link Boost Control Solenoid - 3 Port (3BCS) Autofit

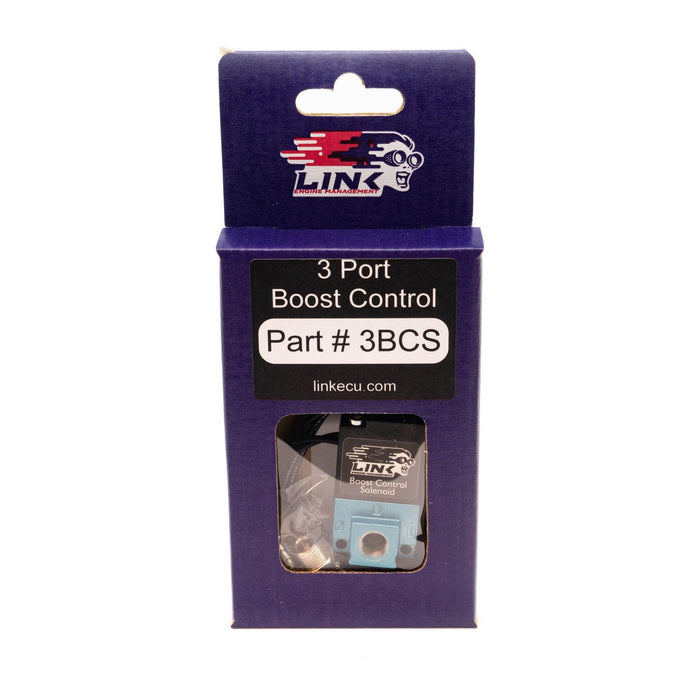

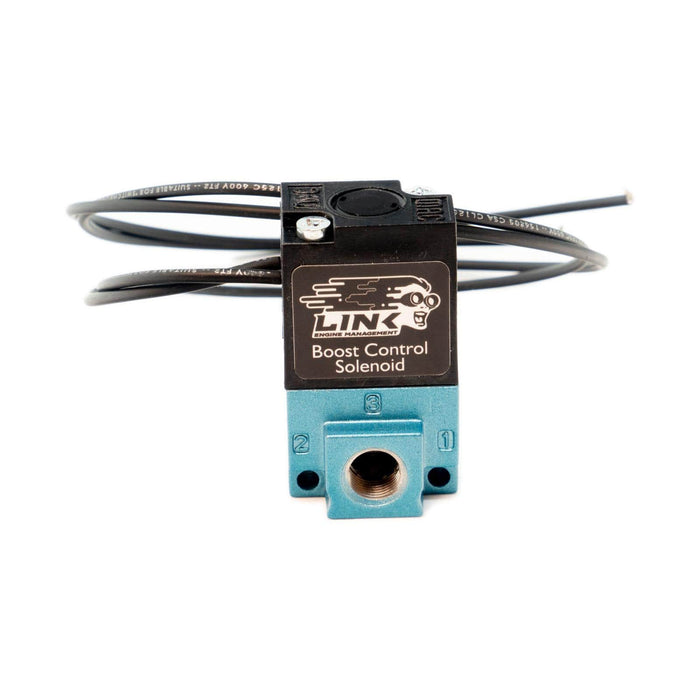

Link Boost Control Solenoid - 3 Port (3BCS)

SKU LINK101-0015
by Link ECU
$195.00 +GST - $195.00 +GST
$195.00 +GST
$195.00 +GST
$195.00 +GST - $195.00 +GST
$195.00 +GST
$224.25 Including GST (NZ Customers only)

Part Number: 101-0015

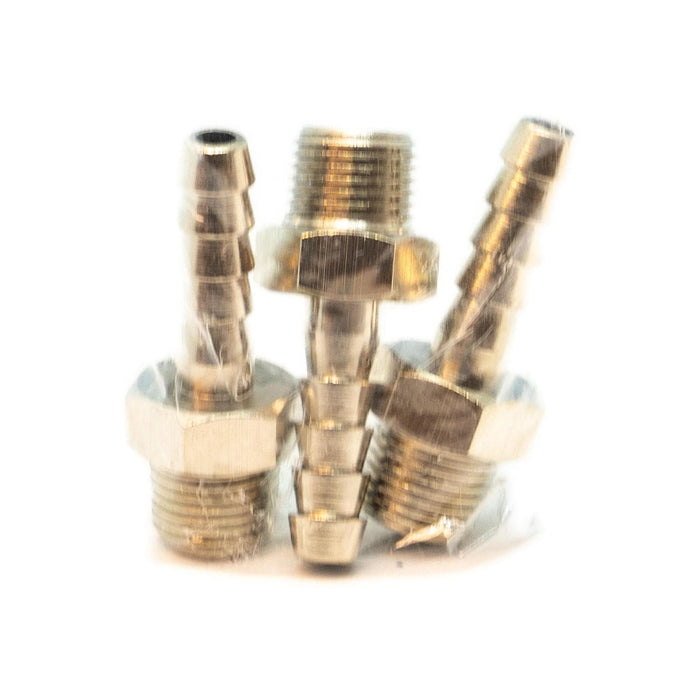

More boost? Of course and this 3 port boost control solenoid will help you do it. 3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate. For higher boost applications consider our 4-Port boost control solenoid. Features: Compatible with all Link ECU’s Can be used with single or multiple wastegates (Using T junction) Compatible with internal or external wastegates Fast and consistent response times High shifting forces MAC 35 series – Rugged, reliable and long operational life Short stroke, high flow Balanced poppet, immune to variations of pressure We recommend starting with a PWM Frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in our PCLink software which is available for free download. Specifications: MAC 35 series 120 PSI max 1/8” BSPPL 12 VDC (5.4W) 18” (45cm) coil leads Includes 3 x 1/8” BSP hose tail fittings for easy connection
