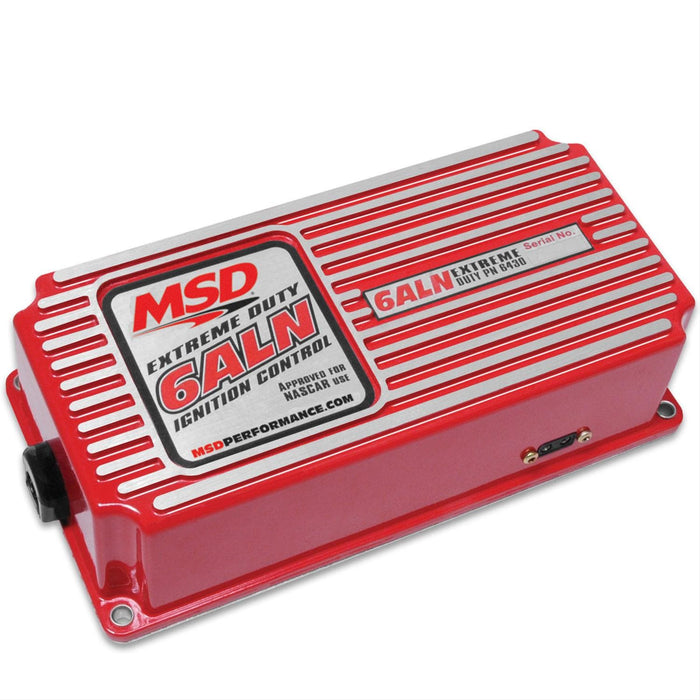

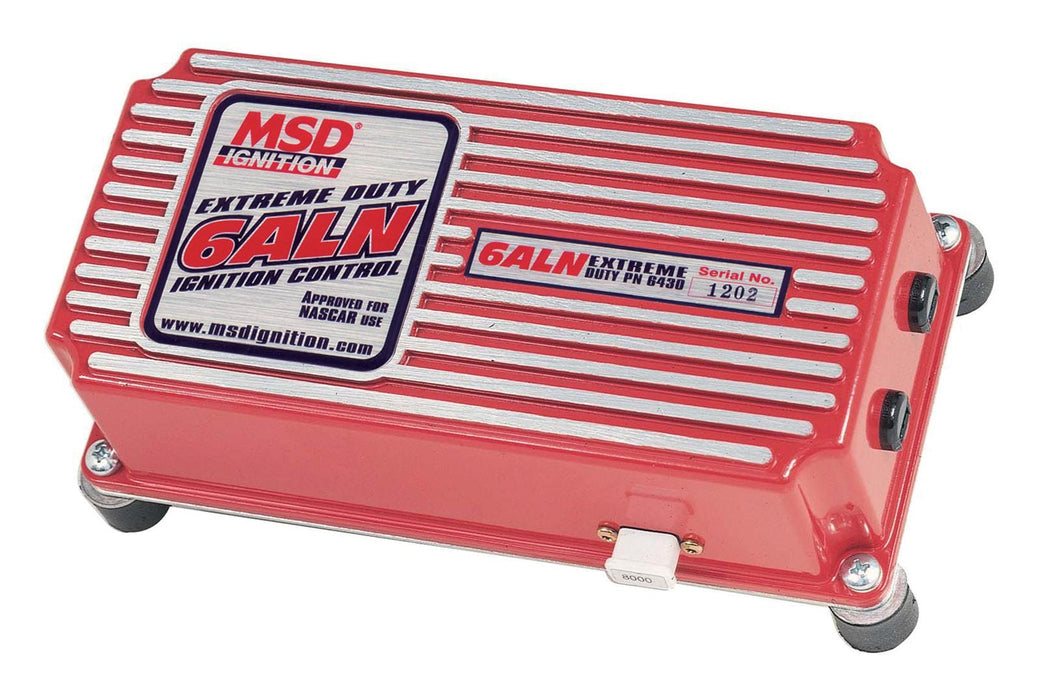

MSD 6TN/6ALN NASCAR CD Ignitions 6430
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 6430
Part Type: Ignition Boxes
Product Line: MSD 6TN/6ALN NASCAR CD Ignitions
Automotive Fittings Part Number: MSD-6430
UPC: 085132064304
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 460-480 V
Current Draw: 1 amp per 1,000 rpm
Spark Output (millijoules): 110 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.000 in.
Height (in.): 2.250 in.
Width (in.): 4.000 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Even-fire only on V6. Meets NASCAR's 20-6.1 ignition wiring rule.
Description:
These MSD 6TN and 6ALN ignitions are the ultimate choices for superior performance in harsh racing conditions. With sturdy vibration mounts and CD circuits encased in a clear 2-part silicone elastomer, they are virtually vibration-proof. A specially designed, weathertight, 6-pin connector meets NASCAR's 20-6.1 ignition wiring rule and provides a tight, positive-locking connection with individual seals to keep dirt and moisture from each connection. The 6TNs are equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, while the 6ALNs have a built-in rev control. These rev controls are adjustable with plug-in modules and will save your engine from overrev damage caused by missed shifts or driveline failures. They'll work with virtually any 4, 6 (even-fire V6 only), or 8-cylinder engines.
