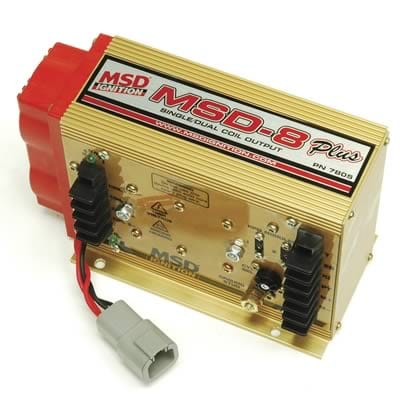

MSD 8-Plus CD Ignitions 7805
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 7805
Part Type: Ignition Boxes
Product Line: MSD 8-Plus CD Ignitions
Automotive Fittings Part Number: MSD-7805
UPC: 085132078059
Ignition Box Output: Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 480 V
Current Draw: 36 amps at 12,000 rpm
Spark Output (millijoules): 315-345 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 8.250 in.
Height (in.): 5.750 in.
Width (in.): 3.750 in.
Ignition Box Color: Gold
Coil Included: No
Quantity: Sold individually.
Description:
These MSD 8-Plus CD ignitions produce the same extreme output as the original 8-series, yet they are now in a smaller housing with improved efficiency and internal components. The new 8-Plus ignitions feature built-in, 2-step rev control. Now you can switch between two rev limits without extra wiring or housings. For those who are looking for a dual-fire MSD 8, the MSD 8-Plus CD ignitions are all that you need. MSD's engineers were able to deliver ignitions that are capable of firing two coils at once for those extreme racers using dual plug race setups.
What does "Will be special ordered for you" mean?
This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items. Therefore, returns are not possible.
“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.
