MSD Atomic EFI Throttle Body Systems 2910
Fuel Injection System, Atomic EFI, Throttle Body Kit, Throttle Body, TPS, MAP, IAT, IAC, Power Module, Kit
SKU MSD-2910
Manufacturer's SKU: 2910
by MSD Ignition
Special Order
Original price
$3,200.94 +GST
-
Original price
$3,200.94 +GST
Original price
$3,200.94 +GST
$3,200.94 +GST
$3,200.94 +GST
-
$3,200.94 +GST
Current price
$3,200.94 +GST
$3681.081 Including GST (NZ Customers only)
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Brand: MSD Ignition
Manufacturer's Part Number: 2910
Part Type: Fuel Injection Systems
Product Line: MSD Atomic EFI Throttle Body Systems
Automotive Fittings Part Number: MSD-2910
UPC: 085132029105
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 525
Timing Control Compatible: Yes
Power Adder Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel Pump Included: No
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Manifold Included: No
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Natural
Injectors Included: Yes
Injector Size (lbs/hr): 80 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
Distributor Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Kit does not include the fuel line, fuel pump, and filter.
CARB EO Number(s): D-722
Emissions: California EO Approved
Description:

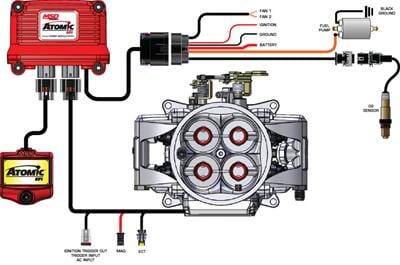

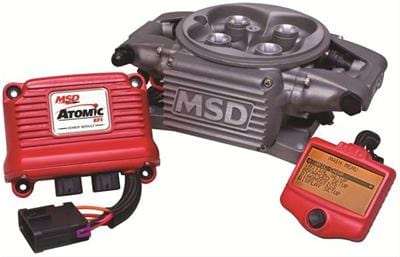

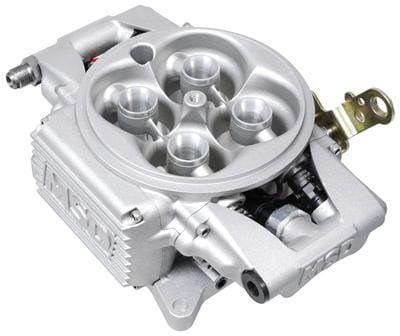

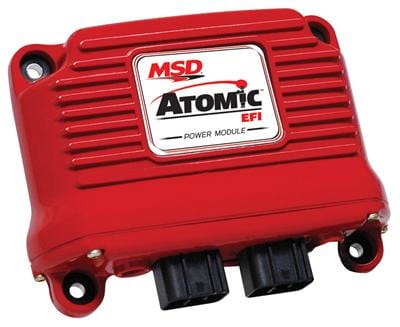

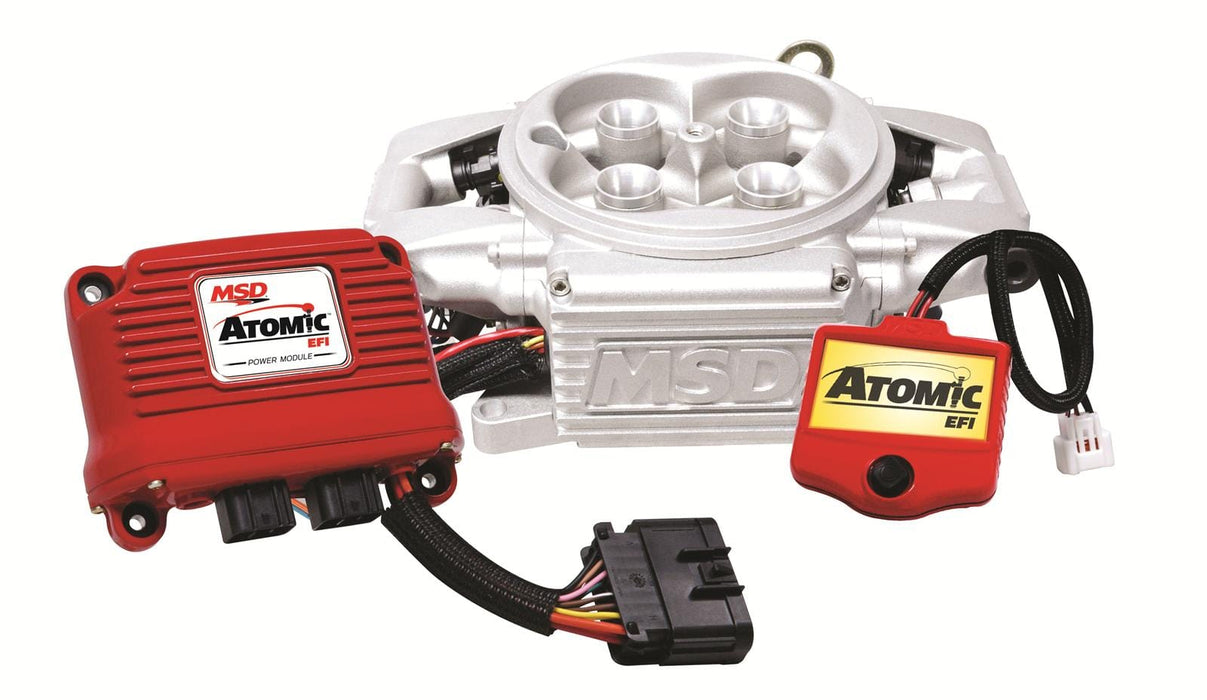

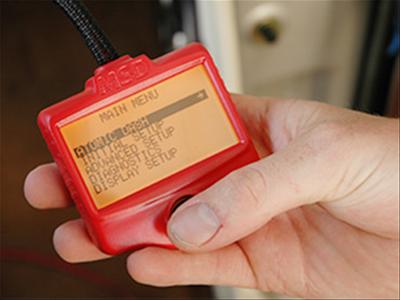

These MSD Atomic EFI fuel injection systems are the perfect choice for anyone planning on converting from carburetor to fuel injection. They include a throttle body, power module (with wideband oxygen sensor), and handheld controller. The throttle body features an integral ECU built on the side, incorporating the TPS, MAP, IAT, and fuel pressure sensors, all in one location. Fuel delivery is provided by four precision 80 psi injectors featuring a stainless steel ball and seat metering method for maximum internal sealing. They also use internal fuel rails, providing a sleek appearance and removing fitting connections where leaks can develop. Atop the Atomic EFIs are annular booster rings that deliver superior atomization of the best fuel mixture, ensuring the best possible fuel delivery. Best of all, the MSD Atomic EFI fuel injection systems bolt directly to any standard square bore carbureted intake manifold and accept the same linkage as most carburetors. The 1.75 in. diameter throttle inlets ride in precision roller bearings for a smooth pedal transition. The Atomic EFIs' unique TPS is a self-calibrating, non-contact sensor, which means that you don't have to worry about configuring it during setup. The included power module is a remote mounted piece that handles all of the high-current loads. MSD's CAN-Bus technology allows for a single, clean connection between these units and the throttle body mounted ECU. Control all of the MSD Atomic EFI fuel injection systems' functions with the hand-held device. Initial setup takes about five minutes, and you'll answer six questions about your specific engine. After the initial setup is complete, the device can provide you with engine data to help you keep your engine working properly. They also feature a removable micro-SD card to record and store data so that you can see what's going on with your engine.
