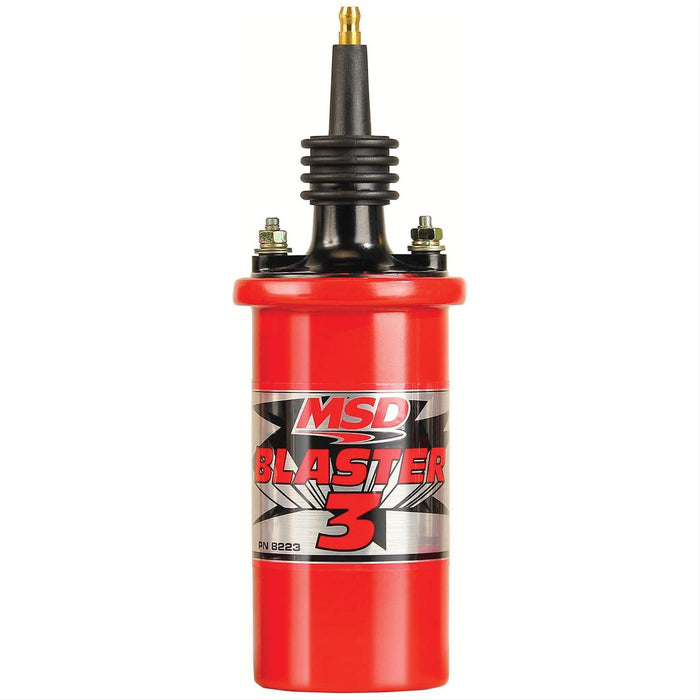

MSD Blaster 3 Ignition Coils 8223
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8223
Part Type: Ignition Coils
Product Line: MSD Blaster 3 Ignition Coils
Automotive Fittings Part Number: MSD-8223
UPC: 085132082230
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.50K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 7.500 in.
Quantity: Sold individually.
Notes: Due to its "oil filled" design, this coil should only be mounted in a vertical (upright) position.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Description:
MSD Blaster 3 coils put out 45,000 V, which are 15,000 more than stock. They also have an oil-filled metal canister and will fit stock mounting brackets. The coils have a unique Power Tower that is twice as high as a standard tower. The extra distance prevents secondary arcing between the primary terminals and the coil center. The HEI-style boot and terminal keep the coil wire secure.
