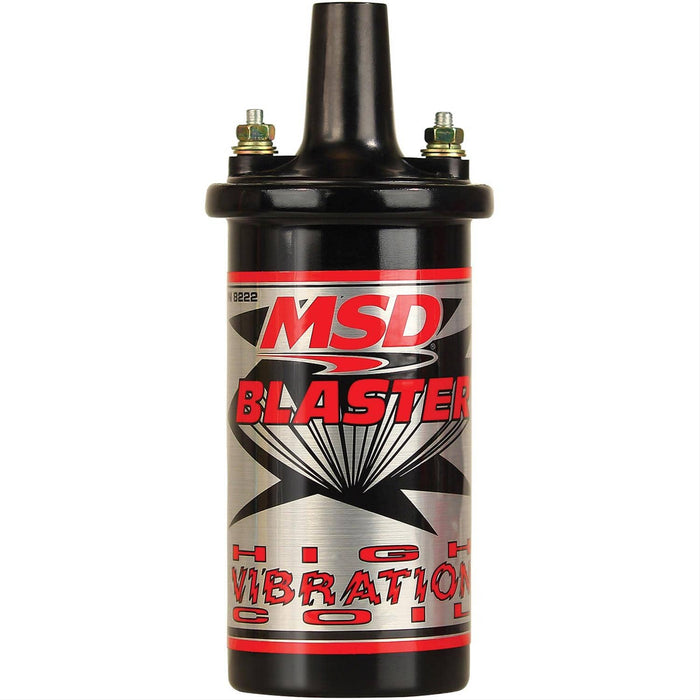

MSD Blaster High-Vibration Ignition Coils 8222
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8222
Part Type: Ignition Coils
Product Line: MSD Blaster High-Vibration Ignition Coils
Automotive Fittings Part Number: MSD-8222
UPC: 085132082223
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.70K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Description:
For off-road, marine, racing, or other extreme environments, MSD Blaster high-vibration ignition coils are the best choice. Their sturdy metal housing is potted with a premium-grade epoxy to completely encase the coils' primary and secondary windings. This protects the coils from high and low frequency vibrations. Alkyd material is used to form the spark tower because of its high dielectric characteristics. For your convenience, a standard canister-type coil mount can be used, and the coils can be mounted in any position.
