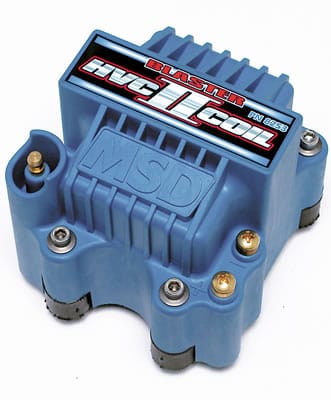

MSD Blaster HVC-2 Ignition Coils 8253
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8253
Part Type: Ignition Coils
Product Line: MSD Blaster HVC-2 Ignition Coils
Automotive Fittings Part Number: MSD-8253
UPC: 085132082537
Coil Style: Remote mount
Primary Resistance: 0.160 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Blue
Maximum Voltage: 44,000 V
Turns Ratio: 100:1
Secondary Resistance: 630.00K ohms
Inductance: 3.50 mH
Peak Current: 450 mA
Spark Duration: 450 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 3.000 in.
Length (in.): 6.000 in.
Width (in.): 6.000 in.
Quantity: Sold individually.
Notes: For use with MSD 6 Series ignition controls.
Description:
MSD engineers drew upon their experience with Top Fuel cars and created these new HVC-2 coils for use with the MSD 6 Series Ignition Controls. These coils utilize an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 and wound specifically to create an effective coil with incredible voltage capabilities, lightning quick rise time, and lengthy spark duration. The housing, also molded from Rynite material, features far-spaced brass primary terminals and a well-protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. They're designed for use with MSD 6 Series ignitions.
