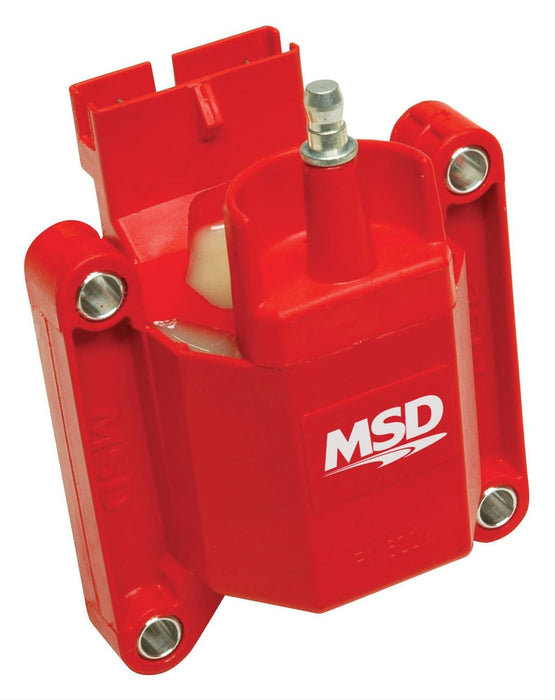

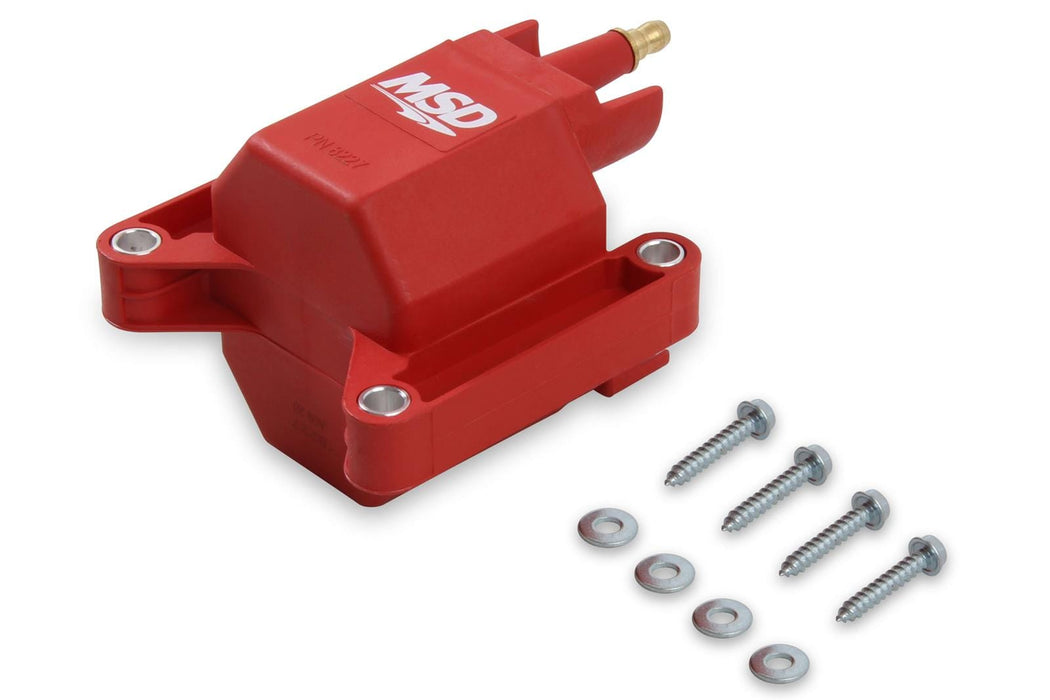

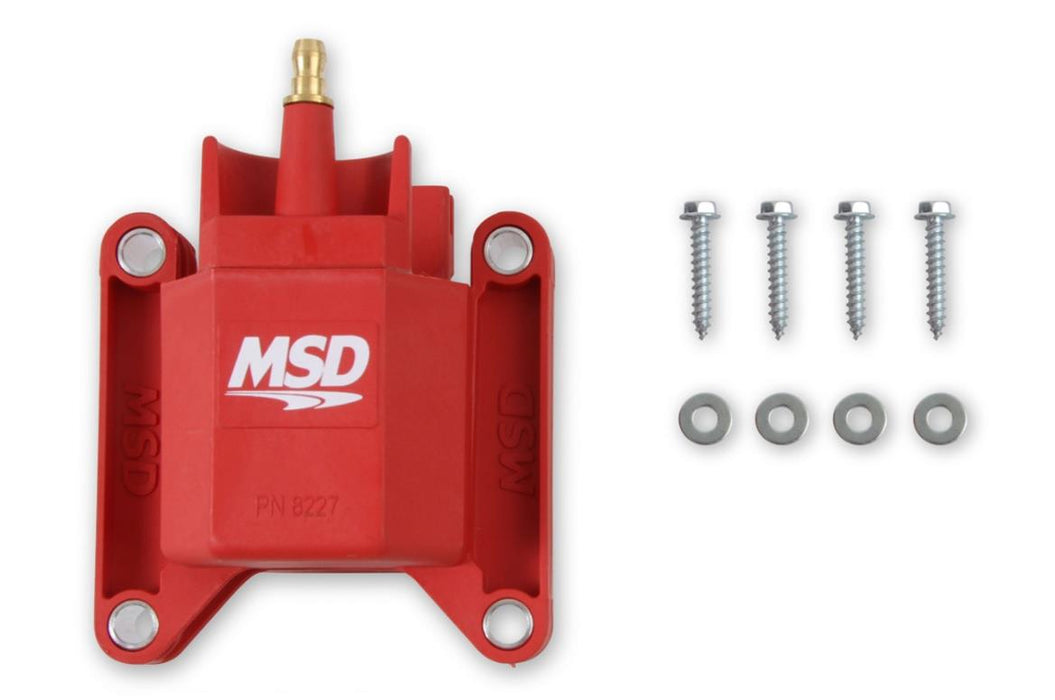

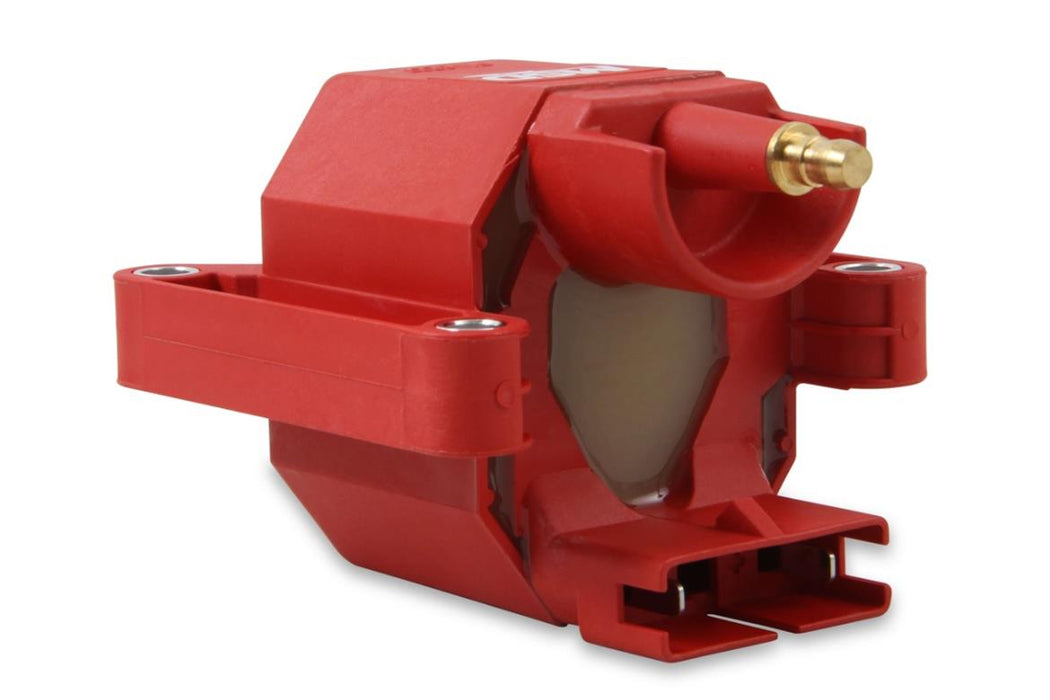

MSD Blaster TFI Coils 8227
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8227
Part Type: Ignition Coils
Product Line: MSD Blaster TFI Coils
Automotive Fittings Part Number: MSD-8227
UPC: 085132082278
Coil Style: Remote mount
Primary Resistance: 0.680 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 44,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.80K ohms
Inductance: 5.60 mH
Peak Current: 220 mA
Spark Duration: 300 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: MSD adapter can be purchased separate if used with a MSD ignition box.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Description:
MSD Blaster TFI coils powers up your Ford ignition system. With windings and construction similar to MSD's Blaster 2 coils, these coils have an increased turns ratio, plus lower primary resistance than your stock coil. MSD Blaster TFI coils will work with stock TFI ignition systems as well as MSD-equipped cars and trucks. Looking to get a little more output voltage from your Ford ignition system? Just bolt in one of these MSD Blaster TFI coils.
