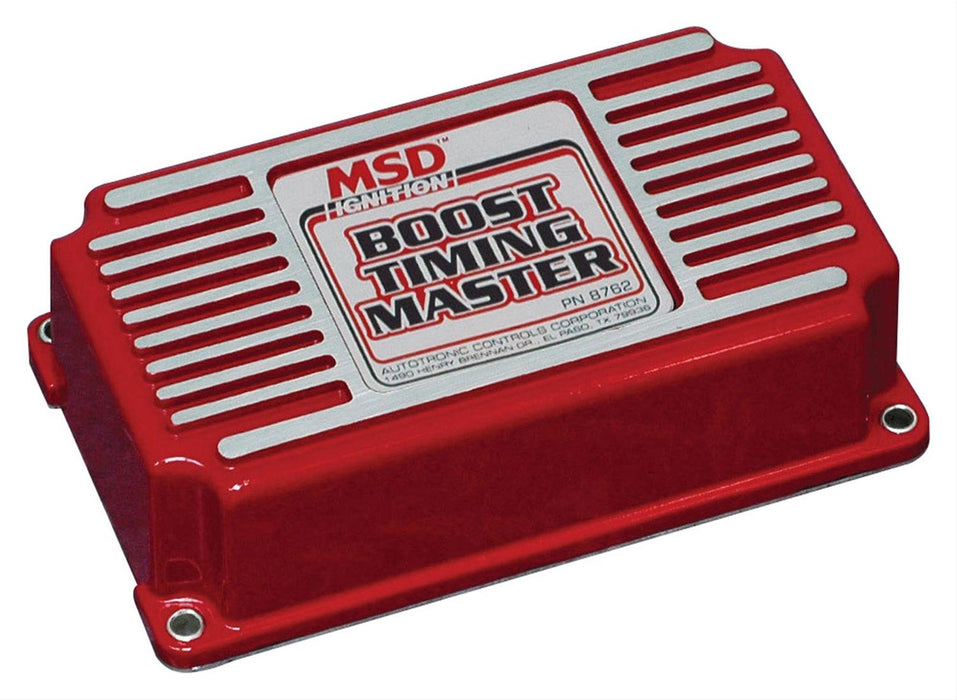

MSD Boost Timing Master Ignitions 8762
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8762
Part Type: Timing Controllers, Electronic
Product Line: MSD Boost Timing Master Ignitions
Automotive Fittings Part Number: MSD-8762
UPC: 085132087624
Circuitry: Analog
Controls Ignition Advance: No
Controls Ignition Retard: Yes
Controller Activation: Boost reference
Adjustable: Yes
Adjustment Style: Knob
Ignition Box Required: Yes
Compatible with Multiple Coil Ignitions: No
Quantity: Sold individually.
CARB EO Number(s): D-40-28
Emissions: California EO Approved
Description:
If you run a blower, turbo, or even a naturally aspirated engine, MSD's Boost Timing Masters allow you to run at the edge of detonation for maximum power output. They can prevent detonation by automatically retarding the timing as your manifold pressure increases. The secret lies in a boost pressure sensor that's inside MSD's solid-state control box. The sensor reads boost pressure through a 1/8 in. vacuum hose attached to a boost pressure source. The result gives you peak power without harmful detonation. A dash-mounted control knob allows you to dial in the retard from 1 to 3 degrees per pound of boost pressure, up to a maximum retard of 15 degrees. Vacuum tubing is not included. These units must be used with an MSD 6, 7 or 8 series ignition.
