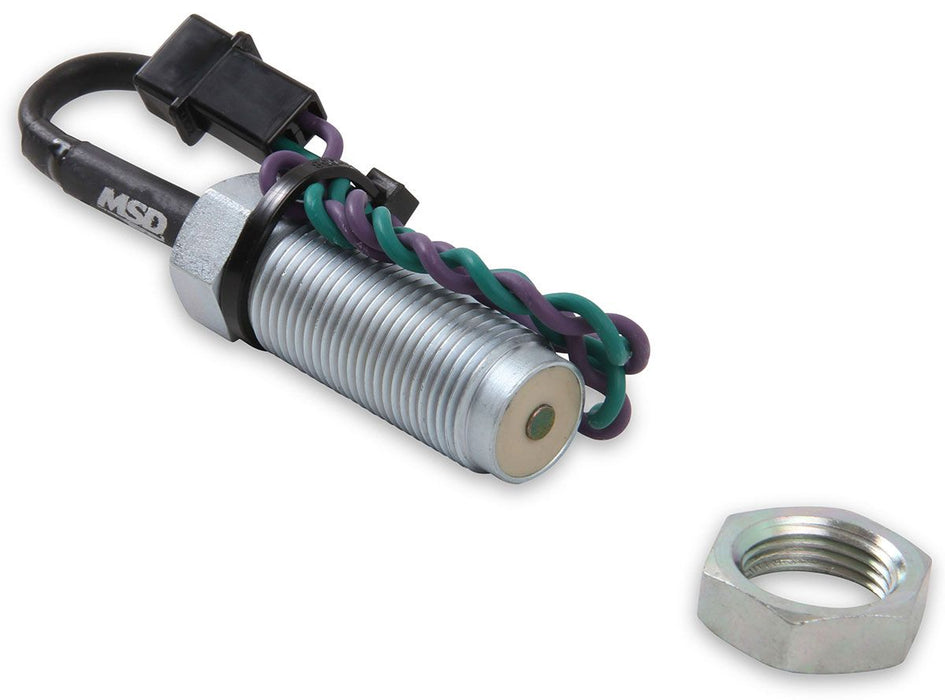

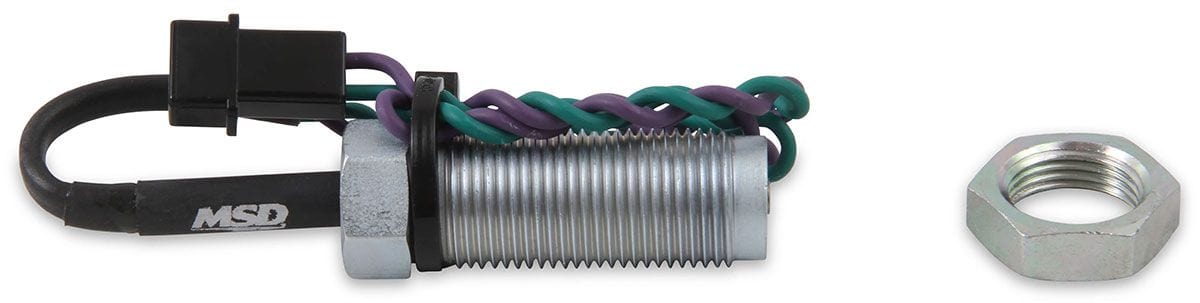

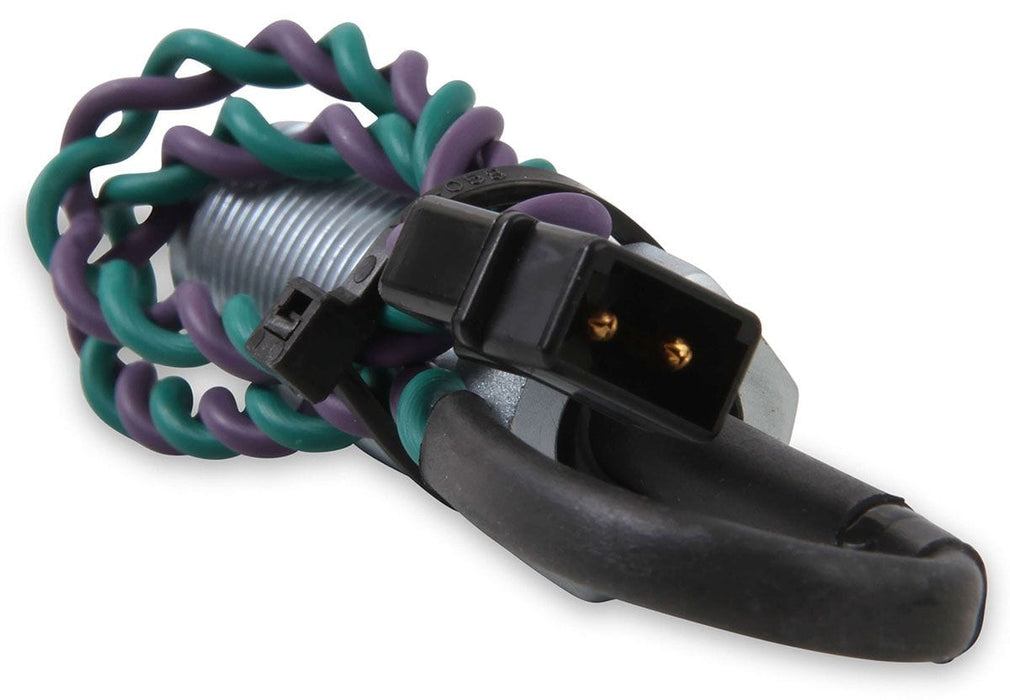

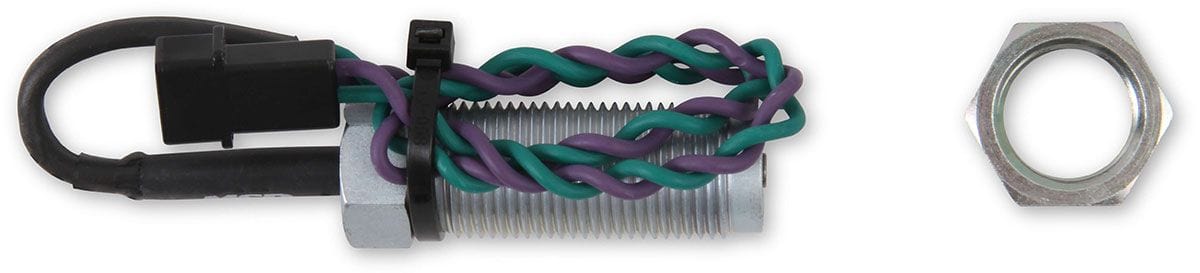

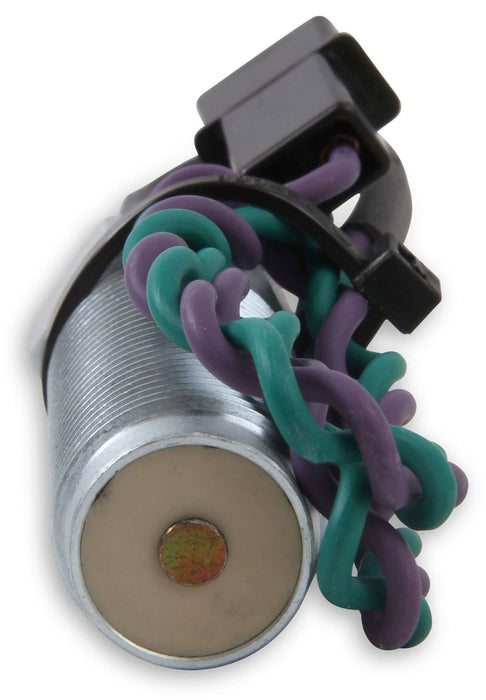

MSD Non-Magnetic, 3/4" x 16 x 2.25", Crank Trigger Signal Pickup MSD8276 Autofit

Crank Trigger Signal Pickup MSD8276

MSD8276 - REPLACEMENT TRIGGER PICKUP
SKU MSD8276
by MSD
Save 7% Save 7%
$304.43 +GST
$304.43 +GST - $304.43 +GST
$304.43 +GST
$283.15 +GST
$283.15 +GST - $283.15 +GST
$283.15 +GST
$325.6225 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped
Crank Trigger Signal Pickup

Non-Magnetic, 3/4" x 16 x 2.25",

MSD8276

D8276

Replacement Pick-up for Flying Magnet crank trigger kits MSD Non-Magnetic Pick-Ups are engineered for extreme applications. In fact, this Pick-Up was designed and tested on 300+ mph top fuel dragsters! To live up to MSD demanding expectations in these extreme applications, we took it upon ourselves to design and build the Pick-Ups in-house. This way we can control every aspect of their assembly and quality. Each Pick-Up is hand wound on a special bobbin and terminated to our tinned conductor, Teflon jacketed wiring. These wires are also routed through a strain relief for protection. This assembly is then installed into the precision housing and is potted with a fracture resistant epoxy compound. To ensure that the windings are entirely encased in epoxy, the Pick-Ups undergo a vacuum procedure to remove any air inside the housing. All of these procedures are necessary to produce the strongest, most reliable non /P>
