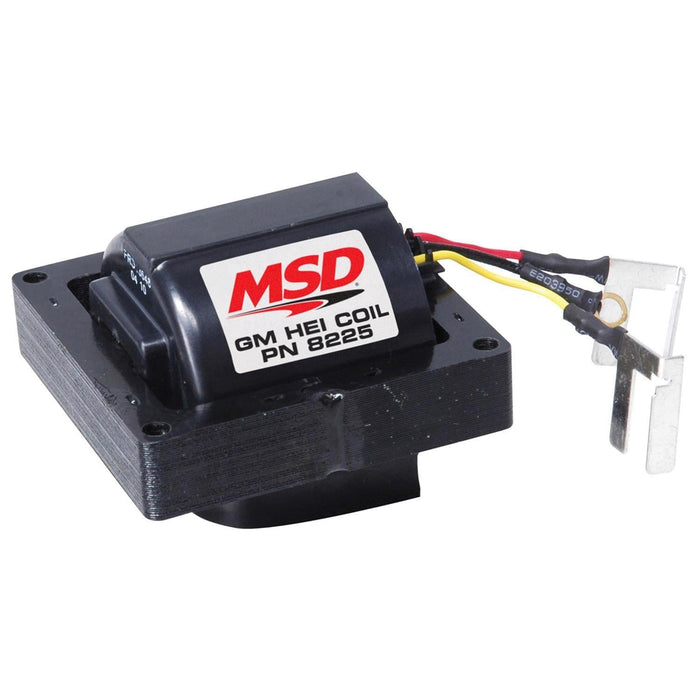

MSD HEI Coils 8225
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8225
Part Type: Ignition Coils
Product Line: MSD HEI Coils
Automotive Fittings Part Number: MSD-8225
UPC: 085132082254
Coil Style: In-cap
Primary Resistance: 0.310 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Black
Maximum Voltage: 42,000 V
Turns Ratio: 70:1
Secondary Resistance: 9.20K ohms
Inductance: 3.50 mH
Peak Current: 200 mA
Spark Duration: 200 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 4.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
CARB EO Number(s): D-40-37
Emissions: California EO Approved
Description:
MSD HEI coils increase spark energy when used with MSD HEI HEAT modules. Now you can replace your stock coil with these high-energy unitized coils for HEI distributors. They have low-inductance, high-temperature windings which charge the coil faster to give you increased spark energy at higher rpm. The premium epoxy filled construction is designed to withstand harsh race applications, as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs.
