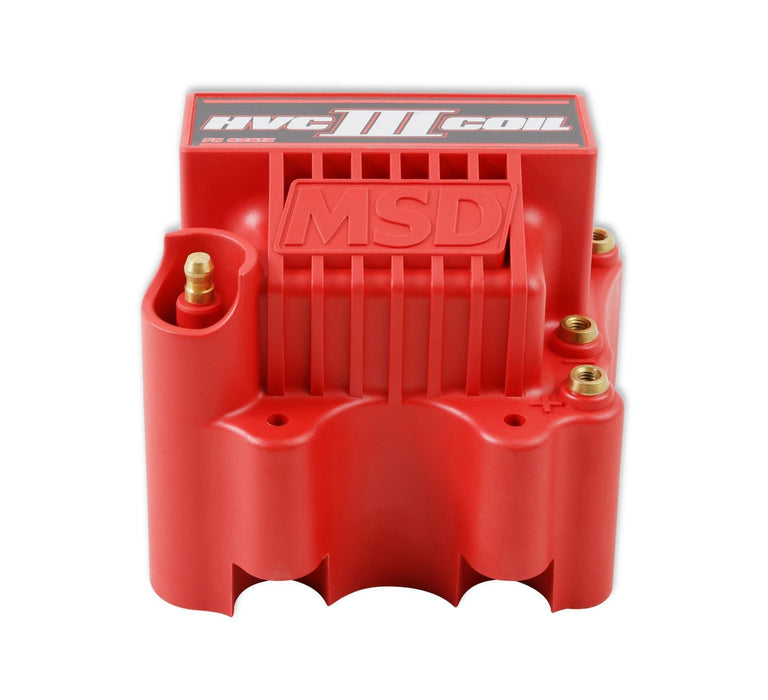

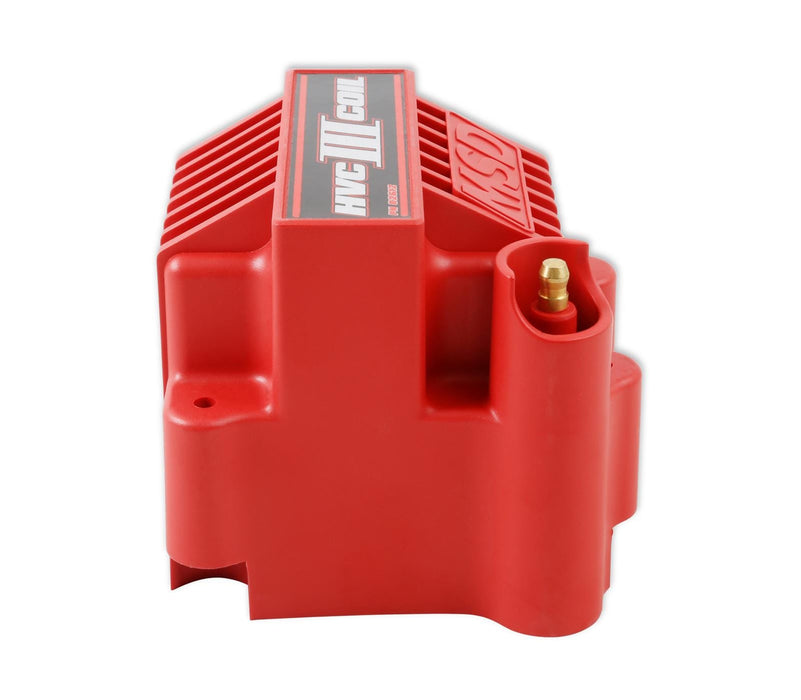

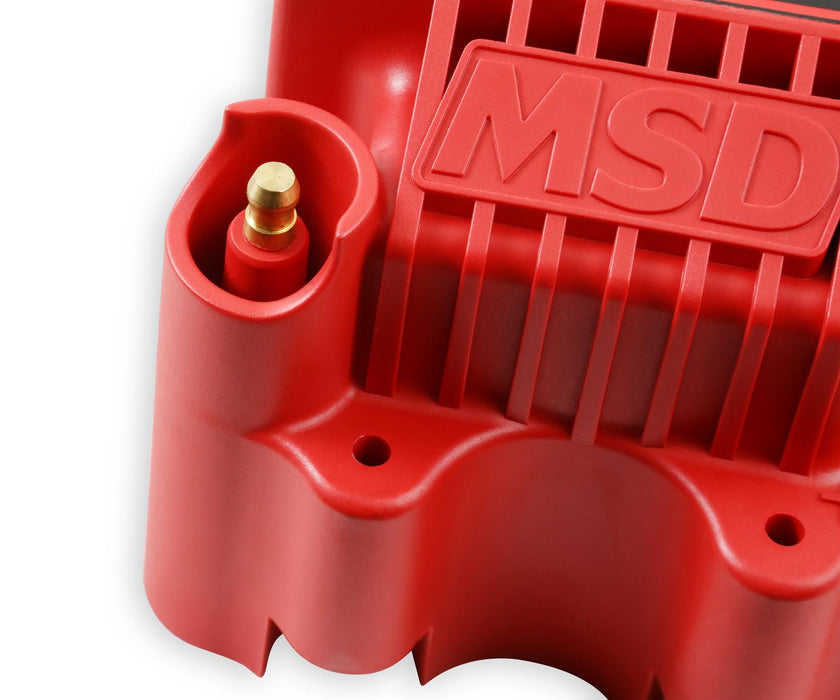

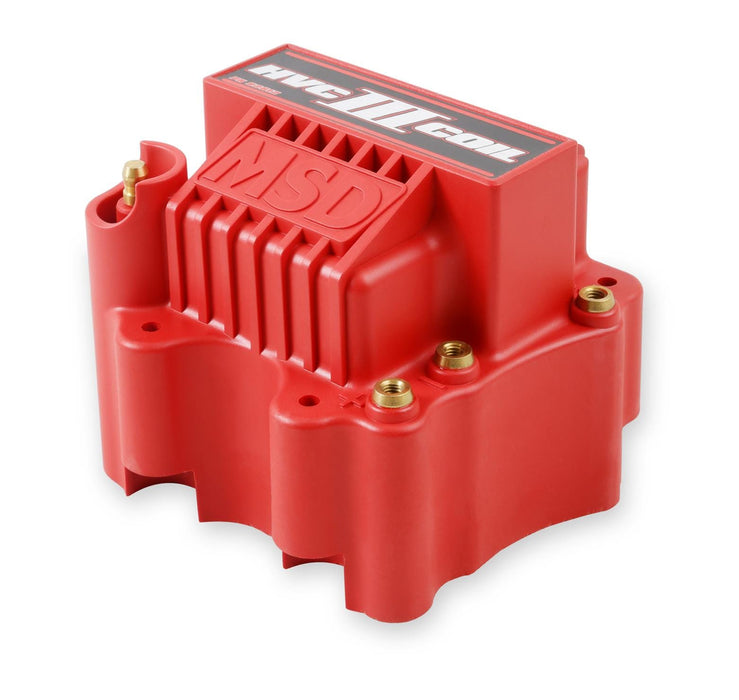

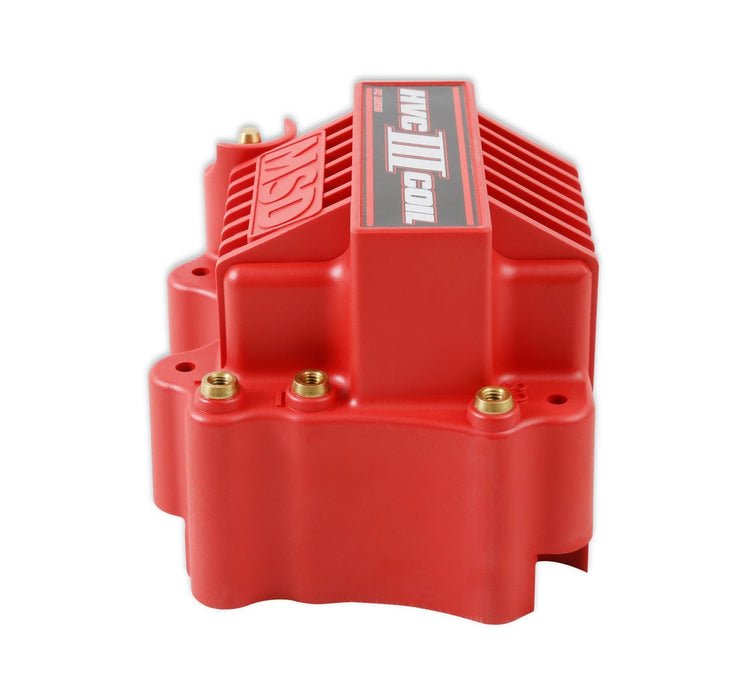

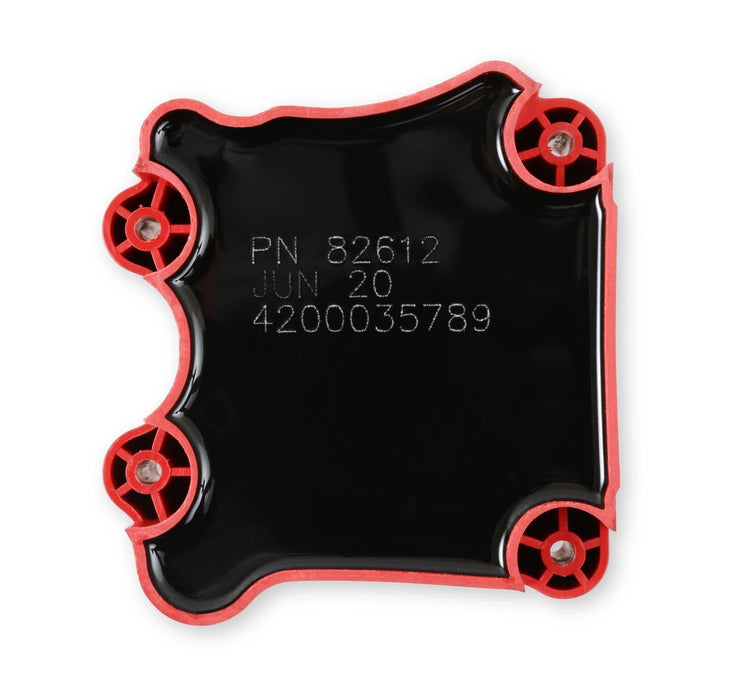

MSD HVC-3 Coils 82612
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 82612
Part Type: Ignition Coils
Product Line: MSD HVC-3 Coils
Automotive Fittings Part Number: MSD-82612
UPC: 090127100660
Coil Style: Remote mount
Primary Resistance: 0.016 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: Male/HEI
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 70:1
Secondary Resistance: 30.00K ohms
Inductance: 0.25 mH
Peak Current: 2 amps
Spark Duration: 150 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Designed for use with the MSD Power Grid 600 single channel ignitions, MSD 7 series or 8 series ignitions only.
Description:

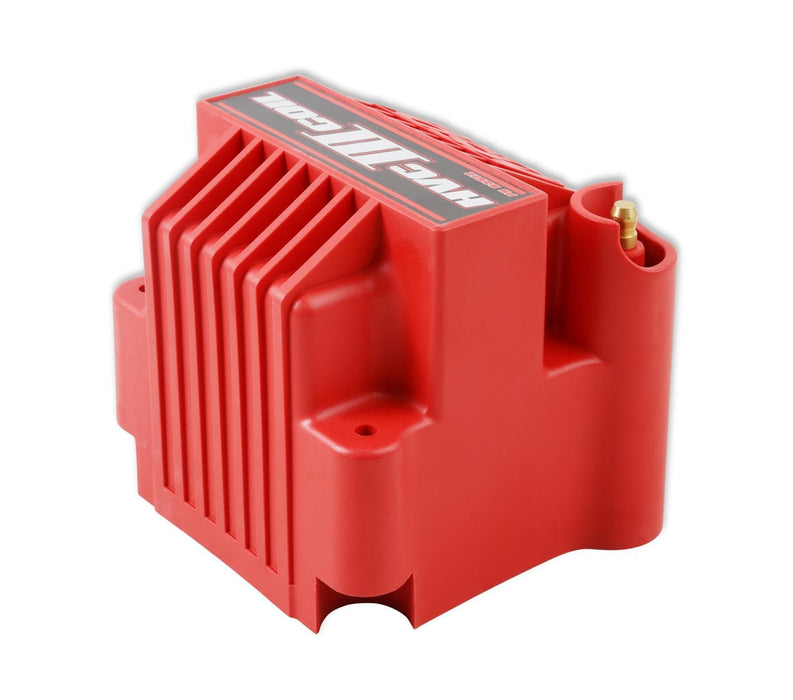

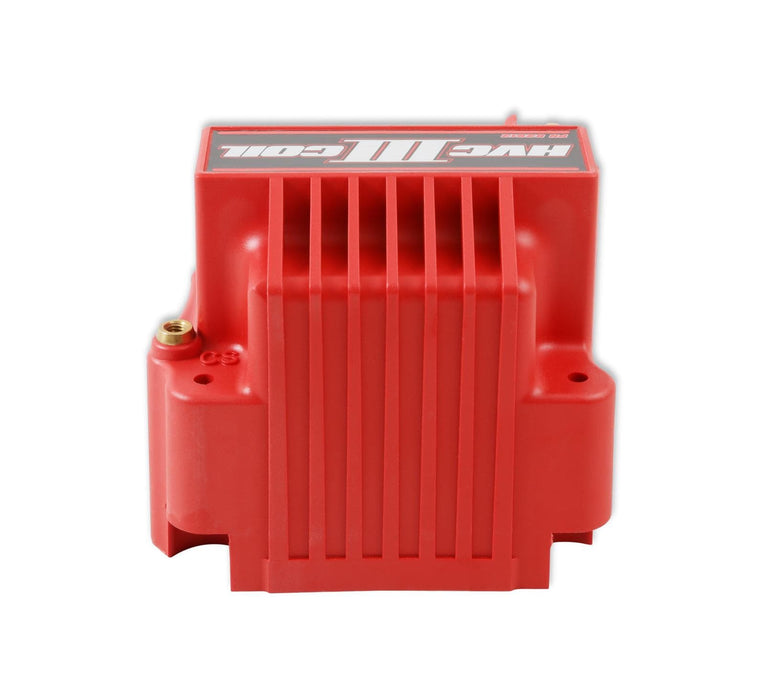

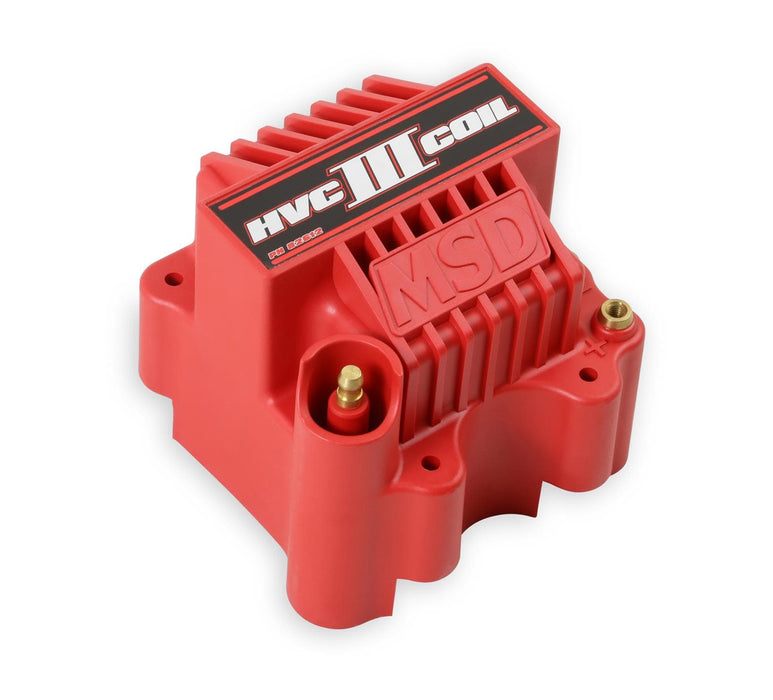

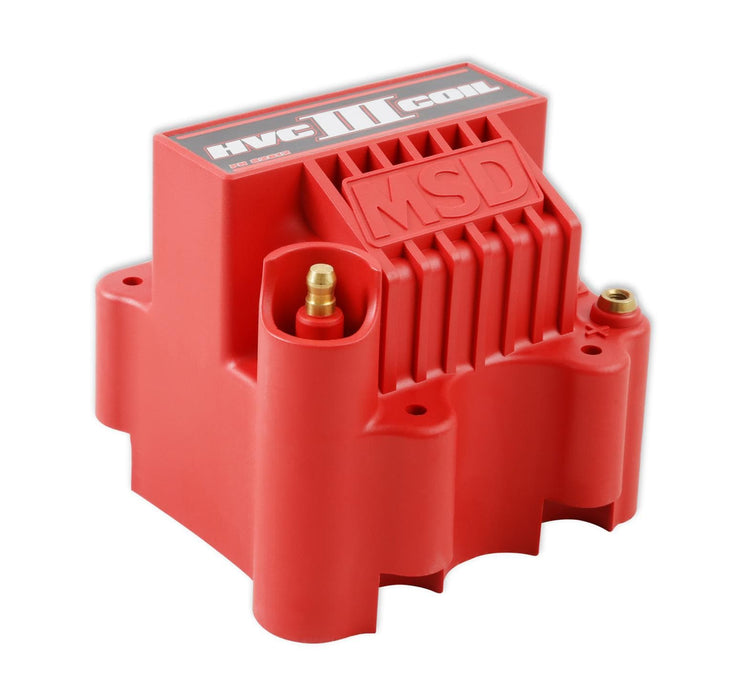

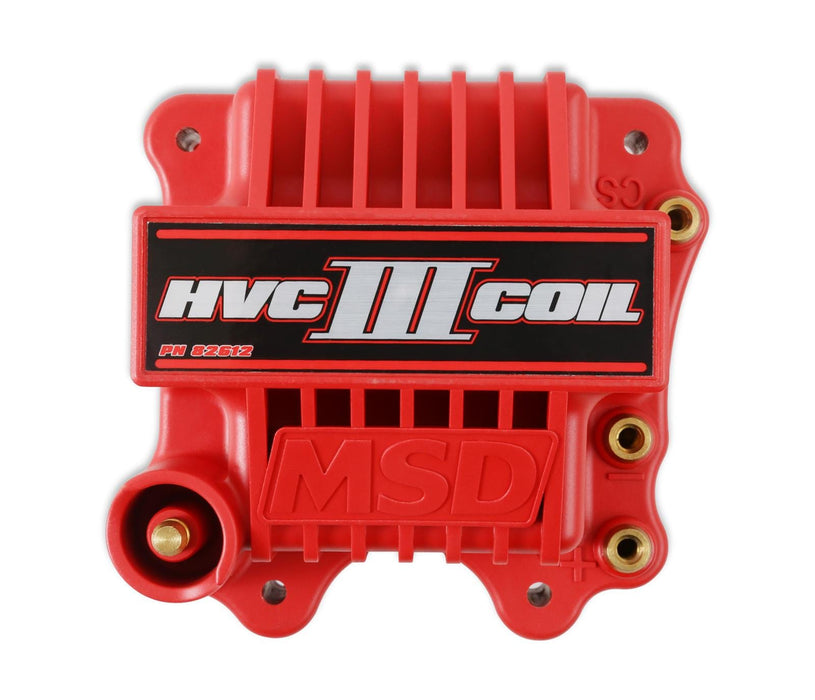

MSD HVC III coils utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material, which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. The MSD HVC-3 coils are equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
Product details:
* Designed for racing applications with an MSD 7 or 8 Series ignition control or Pro 600 single channel
* New U-Core winding design produces more voltage and current
* 70:1 turns ratio and lower primary resistant compound for vibration resistance
* Windings are encased in fracture resistant compound for vibration resistance

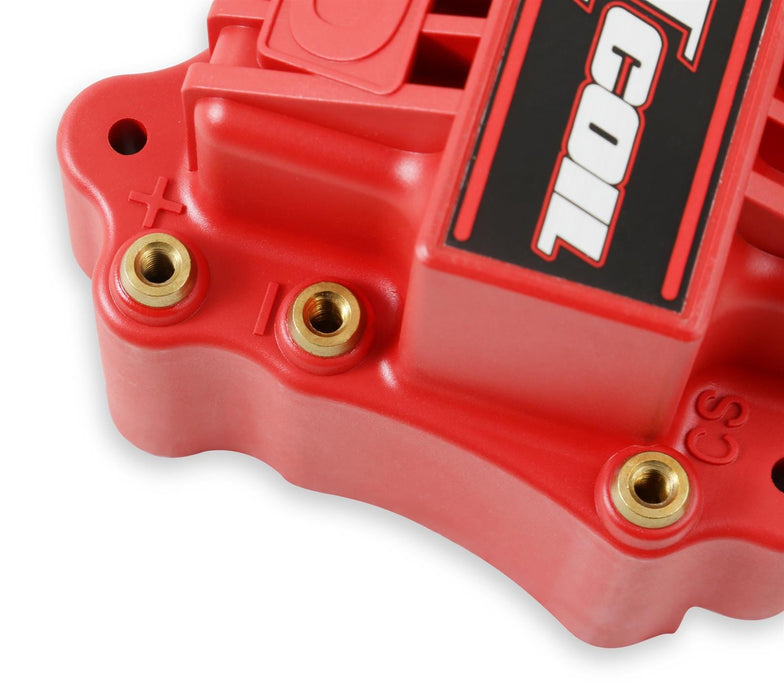

* Dupont Rynite housing with isolated tower and brass primary terminals

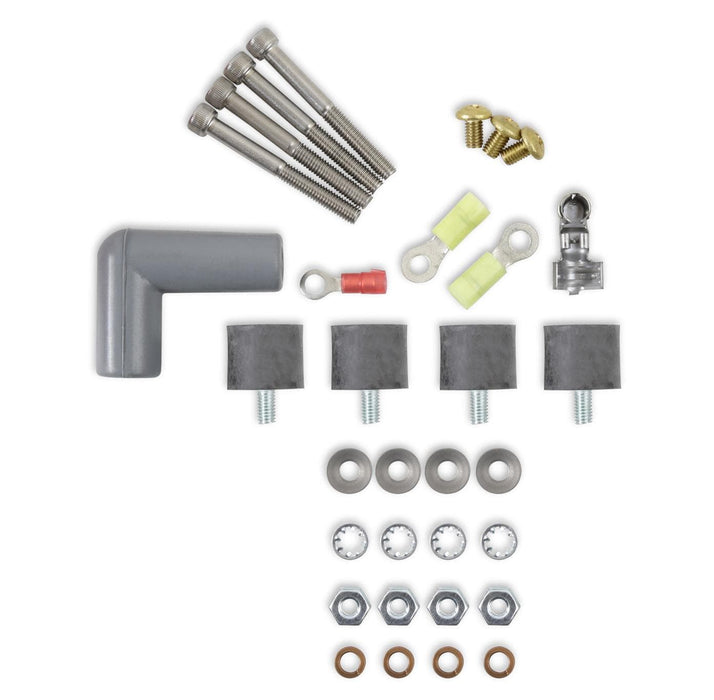

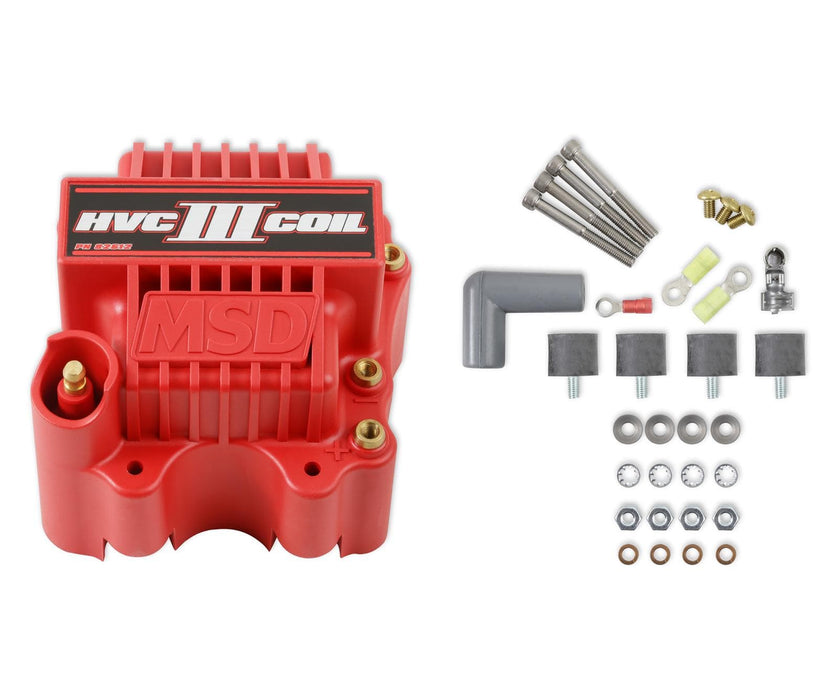

* Supplied with mounting hardware and rubber shock mounts
* Built-in current sensing (when used in conjunction with MSD Pro 600 single channel)
