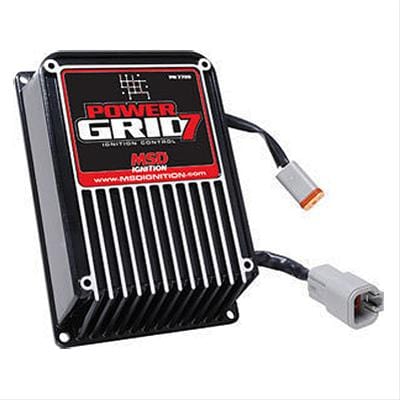

MSD Power Grid 7 Ignition Boxes 7720
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 7720
Part Type: Ignition Boxes
Product Line: MSD Power Grid 7 Ignition Boxes
Automotive Fittings Part Number: MSD-7720
UPC: 085132077205
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: Five-stage
Data Acquisition: Yes
CD Voltage Output to Coil: 545-570 V
Current Draw: 1.3 amps per 1,000 rpm
Spark Output (millijoules): 200-220 mJ
Minimum Operating Voltage: 12 V
Maximum Operating Voltage: 18 V
Length (in.): 7.500 in.
Height (in.): 2.250 in.
Width (in.): 5.000 in.
Ignition Box Color: Black
Coil Included: No
Quantity: Sold individually.

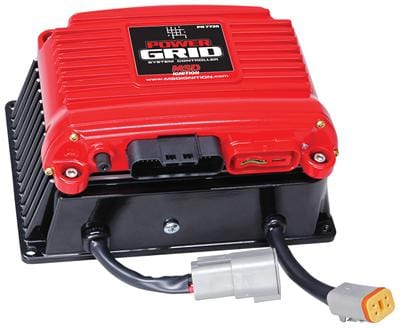

Notes: Designed for use with Power Grid Controller PN 7730 or 77303 only.
Description:
MSD offers these Power Grid 7 ignition boxes as part of the Power Grid 7 ignition system. These ignition boxes pack higher output than other current programmable units. When used with the Power Grid 7 system controller, these USB-compatible boxes offer advanced programming for ultimate control over your rpm and timing. They provide five retard stages for nitrous and four steps of rpm limits for burnouts, spool, launch, and overrev. MSD Power Grid 7 ignition boxes' output switch can be set on rpm, pressure, or time. Power Grid 7 ignition boxes have shift light settings for each gear, and the ignition data acquisition accepts multiple runs.
