MSD Power Grid Dual NTK Wideband O2 Modules 7766
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 7766
Part Type: Data Acquisition Components
Product Line: MSD Power Grid Dual NTK Wideband O2 Modules
Automotive Fittings Part Number: MSD-7766
UPC: 085132077663
Data Acquisition Component Type: Wideband oxygen sensor
Quantity: Sold individually.
Notes: Wideband NTK oxygen sensor for MSD Power Grid exhaust pressure modules.
Description:

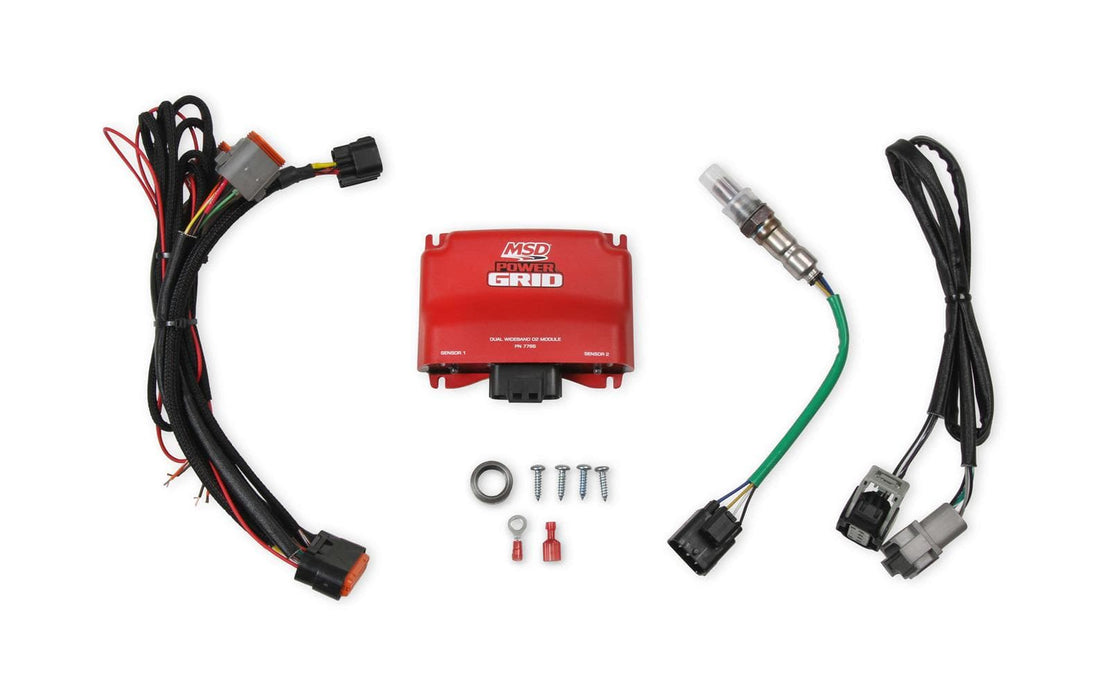

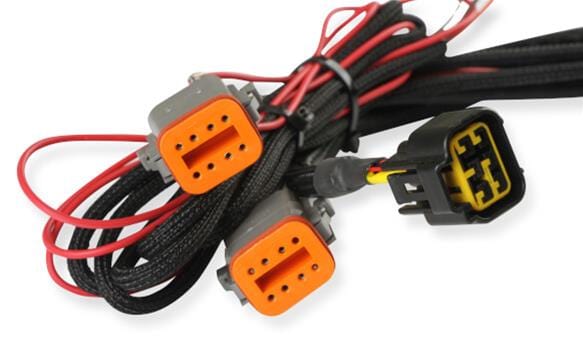

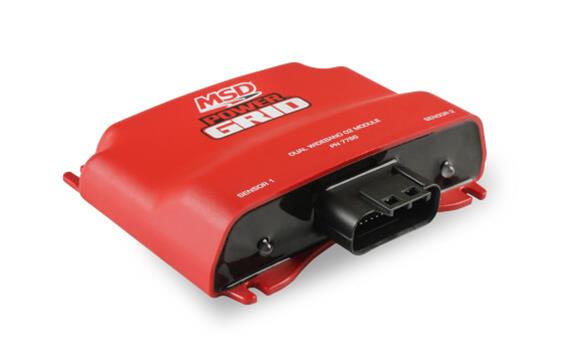

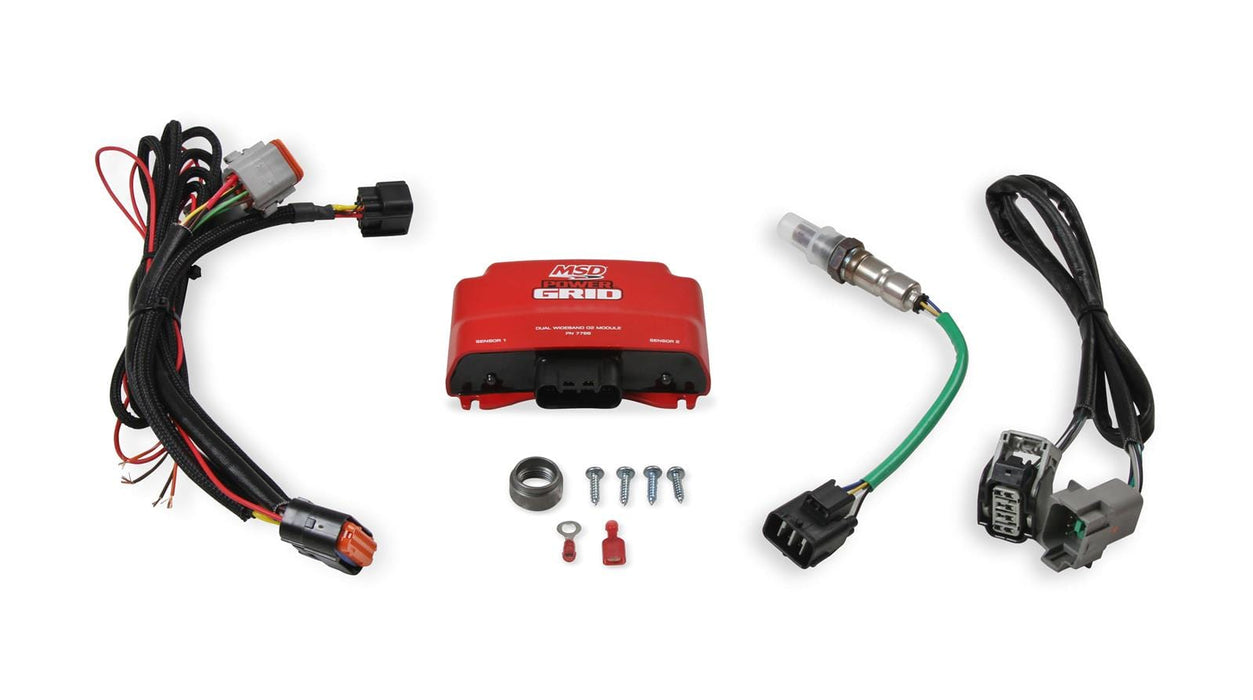

MSD Power Grid Dual NTK Wideband O2 modules are plug-and-play units designed to monitor and record the air/fuel ratio (AFR) of internal combustion engines. These dual channel air/fuel ratio systems are designed to seamlessly interface with the MSD Power Grid system controller (sold separately), and come with an extension harness, along with all of the sensors, connectors, and parts necessary to accurately measure the AFR of vehicles running on gasoline and fuel containing alcohol.
Features:
* Plug-and-play Power Grid module
* Works seamlessly with additional MSD Wideband oxygen sensor modules
* No set up or calibration required (free air calibration is optional for added precision)
* Can be expanded to operate with a second sensor
* Fully potted and sealed unit with automotive-grade connectors
* 0.5 to 4.5 V analog output voltage for a gauge or data acquisition
* LEDs to monitor system operation and health
* High-speed data acquisition (when used with the Power Grid controller)
* Back pressure compensated AFR when used with optional exhaust pressure module (sold separately)
