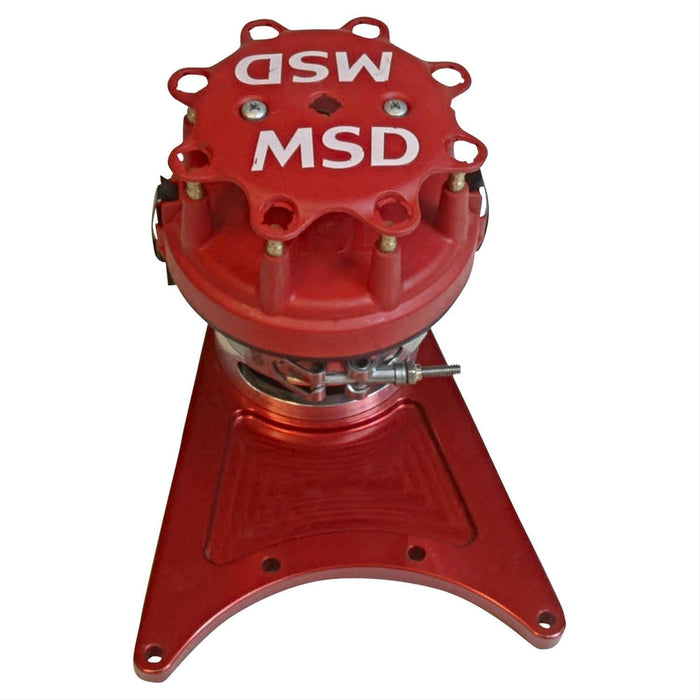

MSD Pro-Billet Front Drive Distributors 8520
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8520
Part Type: Distributors
Product Line: MSD Pro-Billet Front Drive Distributors
Automotive Fittings Part Number: MSD-8520
UPC: 085132085200
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Large cap
Ignition Coil Included: No
Ignition Module Included: No
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Mechanical
Ignition Box Required: Yes
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Kit includes bracket for front mount.
Description:
MSD's Pro-Billet front drive distributors are the solution for race engines that don't have room for a standard distributor, due to firewall clearance or intake combinations. They're run by a wide 9mm belt that is driven by a pulley installed on the camshaft. The belt is wider than any other drive assembly for increased strength and durability. The distributor head is CNC-machined from billet aluminum and is secured to a stout billet aluminum bracket for strength. This system is an extremely accurate way to distribute the spark energy in harsh racing conditions. The distributors have a built-in belt adjustment feature for easy tension adjustments, and a band clamp mount for easy rotor phasing adjustments. They include MSD's Pro-Cap that is injection-molded from Dupont Rynite material for high dielectric strength, and the five in. diameter ensures accurate spark delivery. The distributors are supplied with mounting bolts, a cam pulley, hardware, and a drive belt. They must be used with a Jesel camshaft belt drive kit and an MSD Flying Magnet crank trigger.
