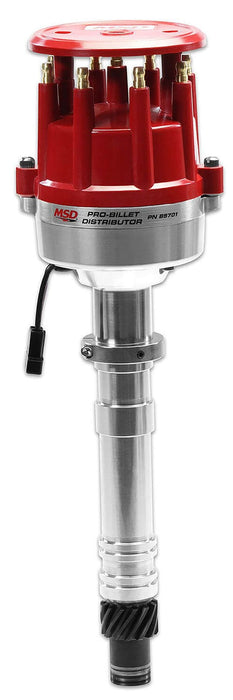

Pro Billet Small Diameter Distributor MSD85701

Suit SB/BB Chev, 1/2" Smaller O.D & 1" Shorter With Adjustable Slip Collar

MSD85701

D85701

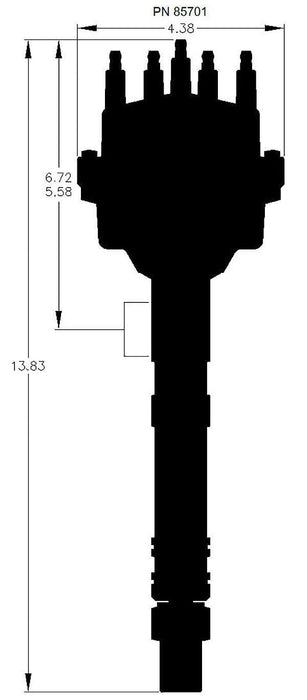

This Chevy distributor is the smallest ever built by MSD! It is specifically designed for racers and street rodders with space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. It measures 1/2" narrower and over 1" shorter than a standard distributor. Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Features: CNC machined billet aluminium housing is 1/2" smaller in diameter and over 1" shorter than conventional Chevy V-8 distributors with the "points" type cap Supplied with small diameter HEI style distributor cap and rotor Will not accept a vacuum advance canister O-ring seals can be added to modified blocks to improve oil pressure control Must be used with an MSD 6, 7, 8, or 10 Series Ignition Special oil tract improves lubrication to the distributor and cam gear Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions) Adjustable slip collar mounting flange for engines with modified deck heights Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra-long sintered bushing Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Advance weight pins are staked and tig welded to the plate Nylon pads ensure smooth operation of the advance weights Mechanical advance assembly can be locked out for crank trigger systems
