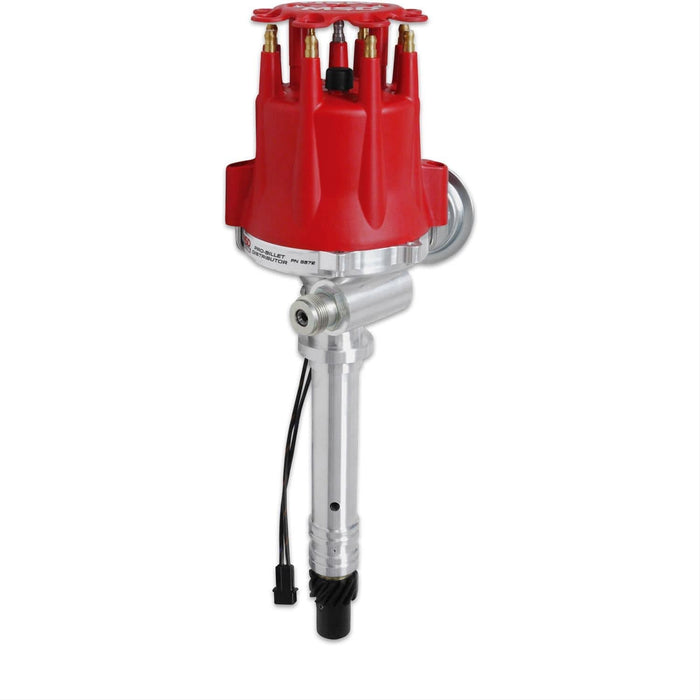

MSD Pro-Billet Tach Drive Distributors 8572
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 8572
Part Type: Distributors
Product Line: MSD Pro-Billet Tach Drive Distributors
Automotive Fittings Part Number: MSD-8572
UPC: 085132085729
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: No
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and mechanical
Ignition Box Required: Yes
Mechanical Tach Drive: Corvette
Slip Collar: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold individually.
CARB EO Number(s): D-40-39
Emissions: California EO Approved
Description:
If your racecar, Corvette, or race Corvette requires a distributor with a mechanical tach drive, these Pro-Billet Tach Drive distributors from MSD are what you need. Their race-proven magnetic pickup delivers precise trigger signals to your MSD ignition every time one of the reluctor's precision paddles pass by. This reluctor assembly is connected to an oversized steel shaft for increased strength and endurance, and is responsible for triggering the magnetic pickup. Inside the stout billet 6061-T6 aluminum housing, a sealed ball bearing and long sintered bushing guide the 0.500 in. steel shaft for high-rpm accuracy. Just above the reluctor is an adjustable mechanical advance assembly that lets you tailor a timing curve to match your engine's needs. This assembly is TIG welded for strength, and features chromoly weights and nylon pads to ensure smooth advance as the rpm increases. Corvette models feature a vacuum advance, and are available with or without an adjustable slip collar for engines that have had the deck height modified or use exotic intake manifolds. The distributors also feature a Rynite base. The tach drive assembly has a grease fitting for lubrication, is compact to clear the firewall and linkage, and can be repositioned easily to fit different applications. These distributors require the use of a separate ignition box, such as an MSD 6, 7, 8, or 10 Series ignition.
